Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_GraphicalObjectFrame
Namespace: http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing
Containing Schema: dml-spreadsheetDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

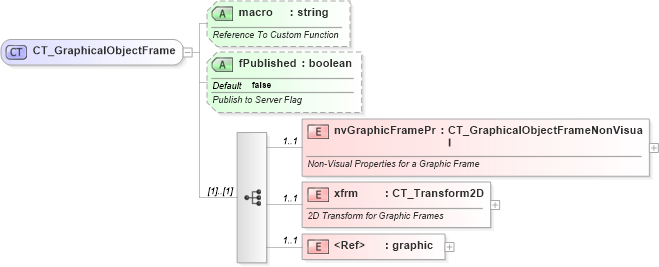

Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into xfrm in schema dml-spreadsheetdrawing_xsd Drilldown into nvGraphicFramePr in schema dml-spreadsheetdrawing_xsd Drilldown into fPublished in schema dml-spreadsheetdrawing_xsd Drilldown into macro in schema dml-spreadsheetdrawing_xsdXSD Diagram of CT_GraphicalObjectFrame in schema dml-spreadsheetdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GraphicalObjectFrame">
    <xsd:sequence>
        <xsd:element name="nvGraphicFramePr" type="CT_GraphicalObjectFrameNonVisual" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Properties for a Graphic Frame</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="xfrm" type="a:CT_Transform2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>2D Transform for Graphic Frames</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="a:graphic" minOccurs="1" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="macro" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Reference To Custom Function</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fPublished" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Publish to Server Flag</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGraphicFramePr nsF:nvGraphicFramePr 1 1
xfrm nsF:xfrm 1 1
graphic a:graphic 1 1
Collapse Child Attributes:
Name Type Default Value Use
macro nsF:macro Optional
fPublished nsF:fPublished false Optional
Collapse Derivation Tree:
Collapse References:
nsF:graphicFrame, nsF:graphicFrame
