Definition Type: Element
Name: graphicFrame
Namespace: http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing
Type: nsF:CT_GraphicalObjectFrame
Containing Schema: dml-spreadsheetDrawing.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

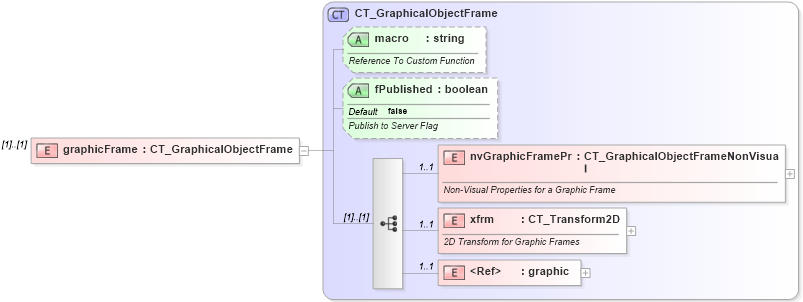

Collapse XSD Schema Diagram:
Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into xfrm in schema dml-spreadsheetdrawing_xsd Drilldown into nvGraphicFramePr in schema dml-spreadsheetdrawing_xsd Drilldown into fPublished in schema dml-spreadsheetdrawing_xsd Drilldown into macro in schema dml-spreadsheetdrawing_xsd Drilldown into CT_GraphicalObjectFrame in schema dml-spreadsheetdrawing_xsdXSD Diagram of graphicFrame in schema dml-spreadsheetdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="graphicFrame" type="CT_GraphicalObjectFrame" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGraphicFramePr nsF:nvGraphicFramePr 1 1
xfrm nsF:xfrm 1 1
graphic a:graphic 1 1
Collapse Child Attributes:
Name Type Default Value Use
macro nsF:macro Optional
fPublished nsF:fPublished false Optional
Collapse Derivation Tree:
