Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_GvmlGraphicalObjectFrame
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-gvml.xsd
Abstract
Collapse XSD Schema Diagram:

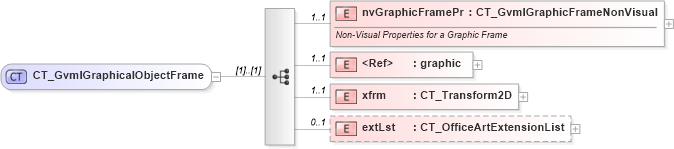

Drilldown into extLst in schema dml-gvml_xsd Drilldown into xfrm in schema dml-gvml_xsd Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into nvGraphicFramePr in schema dml-gvml_xsdXSD Diagram of CT_GvmlGraphicalObjectFrame in schema dml-gvml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GvmlGraphicalObjectFrame">
    <xsd:sequence>
        <xsd:element name="nvGraphicFramePr" type="CT_GvmlGraphicFrameNonVisual" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Properties for a Graphic Frame</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="graphic" minOccurs="1" maxOccurs="1">
        </xsd:element>
        <xsd:element name="xfrm" type="CT_Transform2D" minOccurs="1" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGraphicFramePr a:nvGraphicFramePr 1 1
graphic a:graphic 1 1
xfrm a:xfrm 1 1
extLst a:extLst 0 1
Collapse Derivation Tree:
Collapse References:
a:graphicFrame
