Definition Type: Element
Name: graphicFrame
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_GvmlGraphicalObjectFrame
Containing Schema: dml-gvml.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Graphic Frame
Collapse XSD Schema Diagram:

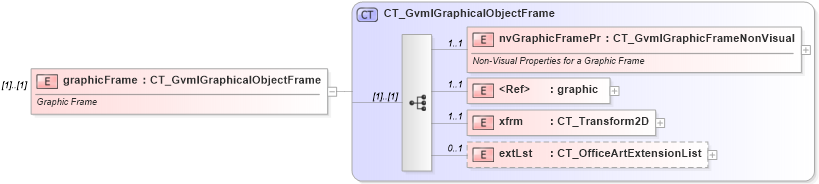

Drilldown into extLst in schema dml-gvml_xsd Drilldown into xfrm in schema dml-gvml_xsd Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into nvGraphicFramePr in schema dml-gvml_xsd Drilldown into CT_GvmlGraphicalObjectFrame in schema dml-gvml_xsdXSD Diagram of graphicFrame in schema dml-gvml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="graphicFrame" type="CT_GvmlGraphicalObjectFrame">
    <xsd:annotation>
        <xsd:documentation>Graphic Frame</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGraphicFramePr a:nvGraphicFramePr 1 1
graphic a:graphic 1 1
xfrm a:xfrm 1 1
extLst a:extLst 0 1
Collapse Derivation Tree:
