Definition Type: ComplexType
Name: CT_GvmlGroupShape
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-gvml.xsd
Abstract

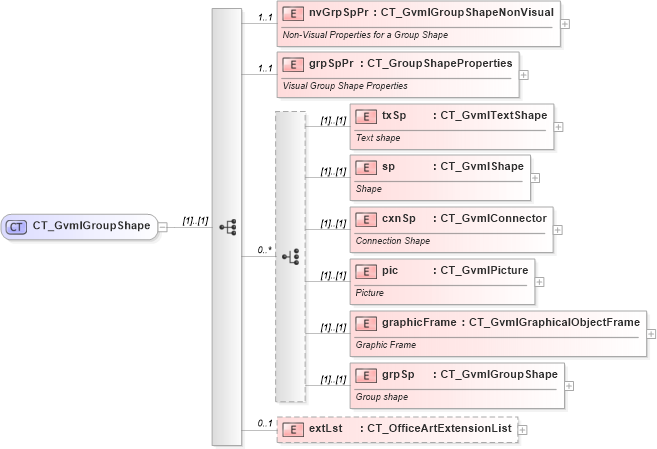

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-gvml_xsd Drilldown into grpSp in schema dml-gvml_xsd Drilldown into graphicFrame in schema dml-gvml_xsd Drilldown into pic in schema dml-gvml_xsd Drilldown into cxnSp in schema dml-gvml_xsd Drilldown into sp in schema dml-gvml_xsd Drilldown into txSp in schema dml-gvml_xsd Drilldown into grpSpPr in schema dml-gvml_xsd Drilldown into nvGrpSpPr in schema dml-gvml_xsdXSD Diagram of CT_GvmlGroupShape in schema dml-gvml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GvmlGroupShape">
    <xsd:sequence>
        <xsd:element name="nvGrpSpPr" type="CT_GvmlGroupShapeNonVisual" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Properties for a Group Shape</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="grpSpPr" type="CT_GroupShapeProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Visual Group Shape Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0" maxOccurs="unbounded">
            <xsd:element name="txSp" type="CT_GvmlTextShape">
                <xsd:annotation>
                    <xsd:documentation>Text shape</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="sp" type="CT_GvmlShape">
                <xsd:annotation>
                    <xsd:documentation>Shape</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="cxnSp" type="CT_GvmlConnector">
                <xsd:annotation>
                    <xsd:documentation>Connection Shape</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="pic" type="CT_GvmlPicture">
                <xsd:annotation>
                    <xsd:documentation>Picture</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="graphicFrame" type="CT_GvmlGraphicalObjectFrame">
                <xsd:annotation>
                    <xsd:documentation>Graphic Frame</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="grpSp" type="CT_GvmlGroupShape">
                <xsd:annotation>
                    <xsd:documentation>Group shape</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGrpSpPr a:nvGrpSpPr 1 1
grpSpPr a:grpSpPr 1 1
txSp a:txSp (1) (1)
sp a:sp (1) (1)
cxnSp a:cxnSp (1) (1)
pic a:pic (1) (1)
graphicFrame a:graphicFrame (1) (1)
grpSp a:grpSp (1) (1)
extLst a:extLst 0 1
Collapse Derivation Tree:
Collapse References:
a:grpSp, nsD:lockedCanvas
