Definition Type: ComplexType
Name: CT_HslColor
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract

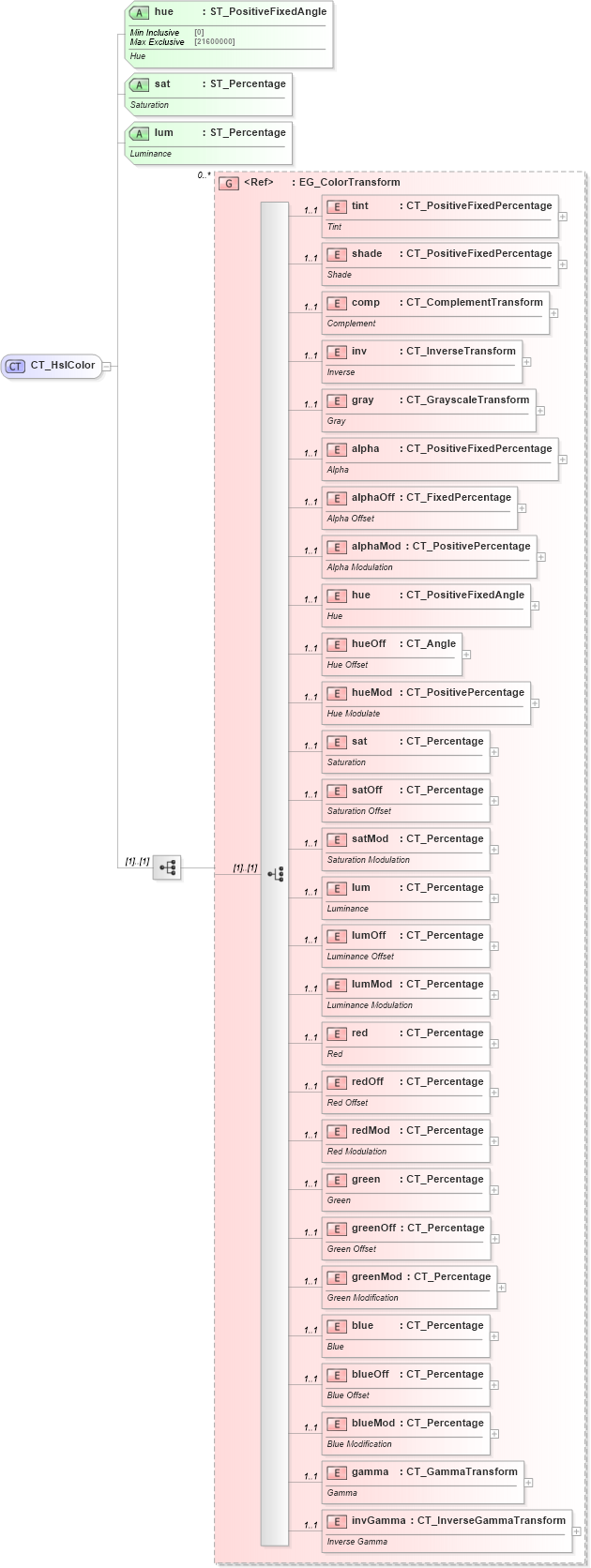

Collapse XSD Schema Diagram:
Drilldown into invGamma in schema dml-basetypes_xsd Drilldown into gamma in schema dml-basetypes_xsd Drilldown into blueMod in schema dml-basetypes_xsd Drilldown into blueOff in schema dml-basetypes_xsd Drilldown into blue in schema dml-basetypes_xsd Drilldown into greenMod in schema dml-basetypes_xsd Drilldown into greenOff in schema dml-basetypes_xsd Drilldown into green in schema dml-basetypes_xsd Drilldown into redMod in schema dml-basetypes_xsd Drilldown into redOff in schema dml-basetypes_xsd Drilldown into red in schema dml-basetypes_xsd Drilldown into lumMod in schema dml-basetypes_xsd Drilldown into lumOff in schema dml-basetypes_xsd Drilldown into lum in schema dml-basetypes_xsd Drilldown into satMod in schema dml-basetypes_xsd Drilldown into satOff in schema dml-basetypes_xsd Drilldown into sat in schema dml-basetypes_xsd Drilldown into hueMod in schema dml-basetypes_xsd Drilldown into hueOff in schema dml-basetypes_xsd Drilldown into hue in schema dml-basetypes_xsd Drilldown into alphaMod in schema dml-basetypes_xsd Drilldown into alphaOff in schema dml-basetypes_xsd Drilldown into alpha in schema dml-basetypes_xsd Drilldown into gray in schema dml-basetypes_xsd Drilldown into inv in schema dml-basetypes_xsd Drilldown into comp in schema dml-basetypes_xsd Drilldown into shade in schema dml-basetypes_xsd Drilldown into tint in schema dml-basetypes_xsd Drilldown into EG_ColorTransform in schema dml-basetypes_xsd Drilldown into lum in schema dml-basetypes_xsd Drilldown into sat in schema dml-basetypes_xsd Drilldown into hue in schema dml-basetypes_xsdXSD Diagram of CT_HslColor in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_HslColor">
    <xsd:sequence>
        <xsd:group ref="EG_ColorTransform" minOccurs="0" maxOccurs="unbounded">
        </xsd:group>
    </xsd:sequence>
    <xsd:attribute name="hue" type="ST_PositiveFixedAngle" use="required">
        <xsd:annotation>
            <xsd:documentation>Hue</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sat" type="ST_Percentage" use="required">
        <xsd:annotation>
            <xsd:documentation>Saturation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="lum" type="ST_Percentage" use="required">
        <xsd:annotation>
            <xsd:documentation>Luminance</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tint a:tint 1 1
shade a:shade 1 1
comp a:comp 1 1
inv a:inv 1 1
gray a:gray 1 1
alpha a:alpha 1 1
alphaOff a:alphaOff 1 1
alphaMod a:alphaMod 1 1
hue a:hue 1 1
hueOff a:hueOff 1 1
hueMod a:hueMod 1 1
sat a:sat 1 1
satOff a:satOff 1 1
satMod a:satMod 1 1
lum a:lum 1 1
lumOff a:lumOff 1 1
lumMod a:lumMod 1 1
red a:red 1 1
redOff a:redOff 1 1
redMod a:redMod 1 1
green a:green 1 1
greenOff a:greenOff 1 1
greenMod a:greenMod 1 1
blue a:blue 1 1
blueOff a:blueOff 1 1
blueMod a:blueMod 1 1
gamma a:gamma 1 1
invGamma a:invGamma 1 1
<xs:group> a:EG_ColorTransform 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
hue a:hue Required
sat a:sat Required
lum a:lum Required
Collapse Derivation Tree:
Collapse References:
a:hslClr
