Definition Type: ComplexType
Name: CT_Hyperlink
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

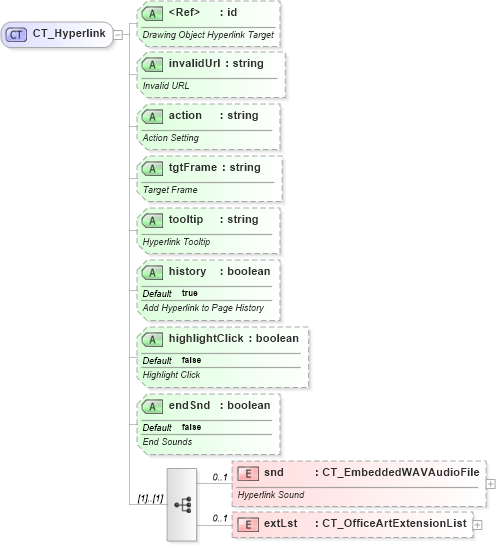

Drilldown into extLst in schema dml-basetypes_xsd Drilldown into snd in schema dml-basetypes_xsd Drilldown into endSnd in schema dml-basetypes_xsd Drilldown into highlightClick in schema dml-basetypes_xsd Drilldown into history in schema dml-basetypes_xsd Drilldown into tooltip in schema dml-basetypes_xsd Drilldown into tgtFrame in schema dml-basetypes_xsd Drilldown into action in schema dml-basetypes_xsd Drilldown into invalidUrl in schema dml-basetypes_xsd Drilldown into id in schema shared-relationshipreference_xsdXSD Diagram of CT_Hyperlink in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Hyperlink">
    <xsd:sequence>
        <xsd:element name="snd" type="CT_EmbeddedWAVAudioFile" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hyperlink Sound</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute ref="r:id" use="optional">
        <xsd:annotation>
            <xsd:documentation>Drawing Object Hyperlink Target</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="invalidUrl" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Invalid URL</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="action" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Action Setting</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tgtFrame" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Target Frame</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tooltip" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Hyperlink Tooltip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="history" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Add Hyperlink to Page History</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="highlightClick" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Highlight Click</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endSnd" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>End Sounds</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
snd a:snd 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id r:id Optional
invalidUrl a:invalidUrl Optional
action a:action Optional
tgtFrame a:tgtFrame Optional
tooltip a:tooltip Optional
history a:history true Optional
highlightClick a:highlightClick false Optional
endSnd a:endSnd false Optional
Collapse Derivation Tree:
Collapse References:
a:hlinkClick, a:hlinkClick, a:hlinkHover, a:hlinkMouseOver
