Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: hlinkClick
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_Hyperlink
Containing Schema: dml-textCharacter.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Click Hyperlink
Collapse XSD Schema Diagram:

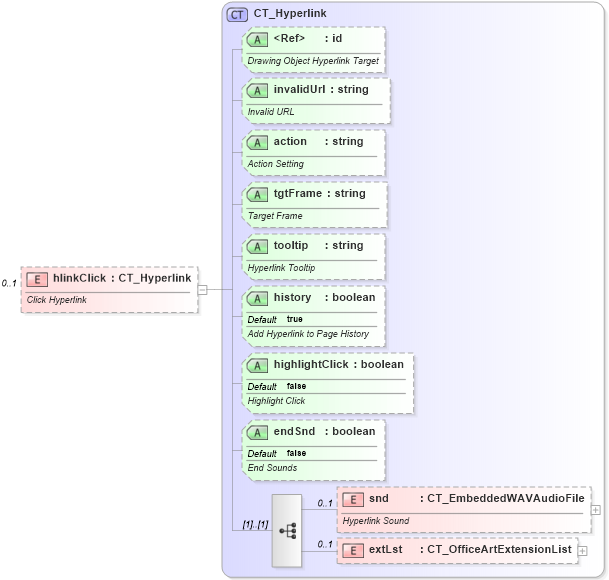

Drilldown into extLst in schema dml-basetypes_xsd Drilldown into snd in schema dml-basetypes_xsd Drilldown into endSnd in schema dml-basetypes_xsd Drilldown into highlightClick in schema dml-basetypes_xsd Drilldown into history in schema dml-basetypes_xsd Drilldown into tooltip in schema dml-basetypes_xsd Drilldown into tgtFrame in schema dml-basetypes_xsd Drilldown into action in schema dml-basetypes_xsd Drilldown into invalidUrl in schema dml-basetypes_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into CT_Hyperlink in schema dml-basetypes_xsdXSD Diagram of hlinkClick in schema dml-textcharacter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="hlinkClick" type="CT_Hyperlink" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Click Hyperlink</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
snd a:snd 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id r:id Optional
invalidUrl a:invalidUrl Optional
action a:action Optional
tgtFrame a:tgtFrame Optional
tooltip a:tooltip Optional
history a:history true Optional
highlightClick a:highlightClick false Optional
endSnd a:endSnd false Optional
Collapse Derivation Tree:
