Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_IconSet
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sheet.xsd
Abstract
Collapse XSD Schema Diagram:

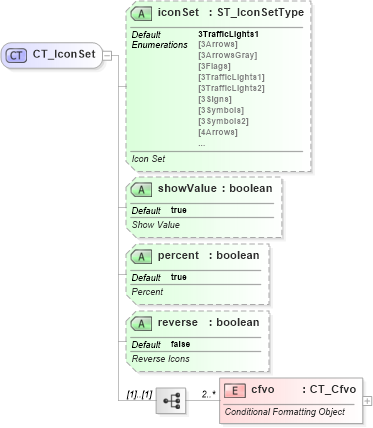

Drilldown into cfvo in schema sml-sheet_xsd Drilldown into reverse in schema sml-sheet_xsd Drilldown into percent in schema sml-sheet_xsd Drilldown into showValue in schema sml-sheet_xsd Drilldown into iconSet in schema sml-sheet_xsdXSD Diagram of CT_IconSet in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_IconSet">
    <xsd:sequence>
        <xsd:element name="cfvo" type="CT_Cfvo" minOccurs="2" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Conditional Formatting Object</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="iconSet" type="ST_IconSetType" use="optional" default="3TrafficLights1">
        <xsd:annotation>
            <xsd:documentation>Icon Set</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showValue" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Show Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="percent" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Percent</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="reverse" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Reverse Icons</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cfvo nsM:cfvo 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
iconSet nsM:iconSet 3TrafficLights1 Optional
showValue nsM:showValue true Optional
percent nsM:percent true (Optional)
reverse nsM:reverse false Optional
Collapse Derivation Tree:
Collapse References:
nsM:iconSet
