Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: iconSet
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_IconSet
Containing Schema: sml-sheet.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Icon Set

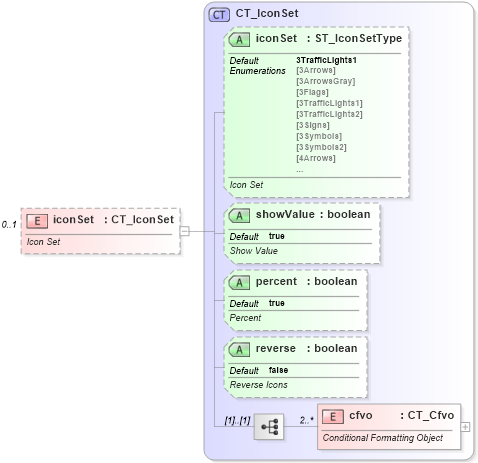

Collapse XSD Schema Diagram:
Drilldown into cfvo in schema sml-sheet_xsd Drilldown into reverse in schema sml-sheet_xsd Drilldown into percent in schema sml-sheet_xsd Drilldown into showValue in schema sml-sheet_xsd Drilldown into iconSet in schema sml-sheet_xsd Drilldown into CT_IconSet in schema sml-sheet_xsdXSD Diagram of iconSet in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="iconSet" type="CT_IconSet" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Icon Set</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cfvo nsM:cfvo 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
iconSet nsM:iconSet 3TrafficLights1 Optional
showValue nsM:showValue true Optional
percent nsM:percent true (Optional)
reverse nsM:reverse false Optional
Collapse Derivation Tree:
