Definition Type: ComplexType
Name: CT_ImageData
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd
Abstract

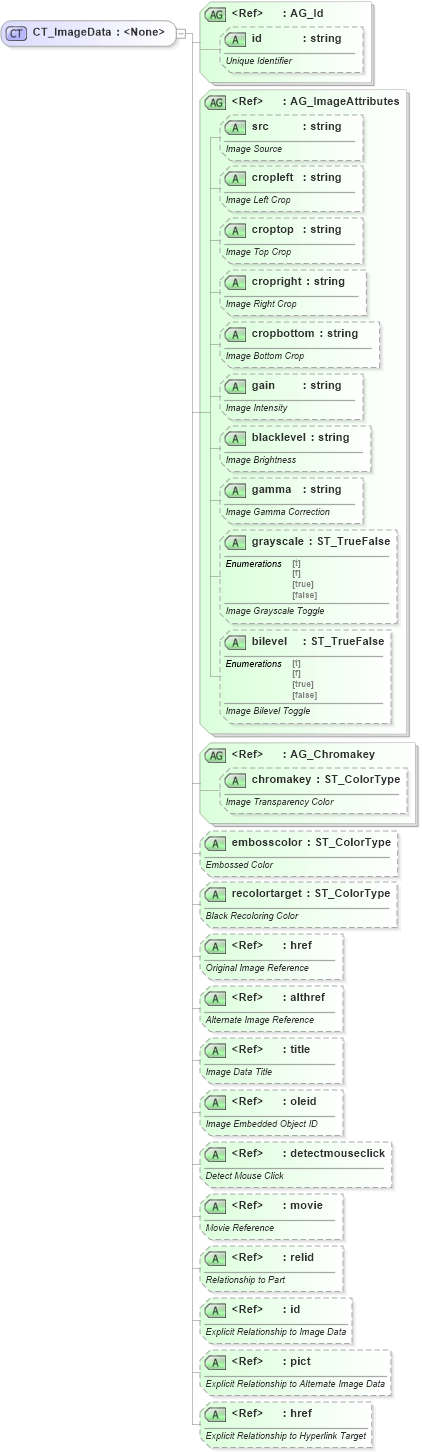

Collapse XSD Schema Diagram:
Drilldown into href in schema shared-relationshipreference_xsd Drilldown into pict in schema shared-relationshipreference_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into relid in schema vml-officedrawing_xsd Drilldown into movie in schema vml-officedrawing_xsd Drilldown into detectmouseclick in schema vml-officedrawing_xsd Drilldown into oleid in schema vml-officedrawing_xsd Drilldown into title in schema vml-officedrawing_xsd Drilldown into althref in schema vml-officedrawing_xsd Drilldown into href in schema vml-officedrawing_xsd Drilldown into recolortarget in schema vml-main_xsd Drilldown into embosscolor in schema vml-main_xsd Drilldown into chromakey in schema vml-main_xsd Drilldown into AG_Chromakey in schema vml-main_xsd Drilldown into bilevel in schema vml-main_xsd Drilldown into grayscale in schema vml-main_xsd Drilldown into gamma in schema vml-main_xsd Drilldown into blacklevel in schema vml-main_xsd Drilldown into gain in schema vml-main_xsd Drilldown into cropbottom in schema vml-main_xsd Drilldown into cropright in schema vml-main_xsd Drilldown into croptop in schema vml-main_xsd Drilldown into cropleft in schema vml-main_xsd Drilldown into src in schema vml-main_xsd Drilldown into AG_ImageAttributes in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsdXSD Diagram of CT_ImageData in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ImageData">
    <xsd:attributeGroup ref="AG_Id" />
    <xsd:attributeGroup ref="AG_ImageAttributes" />
    <xsd:attributeGroup ref="AG_Chromakey" />
    <xsd:attribute name="embosscolor" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Embossed Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="recolortarget" type="ST_ColorType">
        <xsd:annotation>
            <xsd:documentation>Black Recoloring Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:href">
        <xsd:annotation>
            <xsd:documentation>Original Image Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:althref">
        <xsd:annotation>
            <xsd:documentation>Alternate Image Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:title">
        <xsd:annotation>
            <xsd:documentation>Image Data Title</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:oleid">
        <xsd:annotation>
            <xsd:documentation>Image Embedded Object ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:detectmouseclick">
        <xsd:annotation>
            <xsd:documentation>Detect Mouse Click</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:movie">
        <xsd:annotation>
            <xsd:documentation>Movie Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:relid">
        <xsd:annotation>
            <xsd:documentation>Relationship to Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:id">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Image Data</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:pict">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Alternate Image Data</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:href">
        <xsd:annotation>
            <xsd:documentation>Explicit Relationship to Hyperlink Target</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
src v:src Optional
cropleft v:cropleft Optional
croptop v:croptop Optional
cropright v:cropright Optional
cropbottom v:cropbottom Optional
gain v:gain Optional
blacklevel v:blacklevel Optional
gamma v:gamma Optional
grayscale v:grayscale Optional
bilevel v:bilevel Optional
chromakey v:chromakey Optional
embosscolor v:embosscolor Optional
recolortarget v:recolortarget (Optional)
href o:href (Optional)
althref o:althref (Optional)
title o:title (Optional)
oleid o:oleid (Optional)
detectmouseclick o:detectmouseclick (Optional)
movie o:movie (Optional)
relid o:relid (Optional)
id r:id (Optional)
pict r:pict (Optional)
href r:href (Optional)
