Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: imagedata
Namespace: urn:schemas-microsoft-com:vml
Type: v:CT_ImageData
Containing Schema: vml-main.xsd
Abstract
Documentation:
Image Data

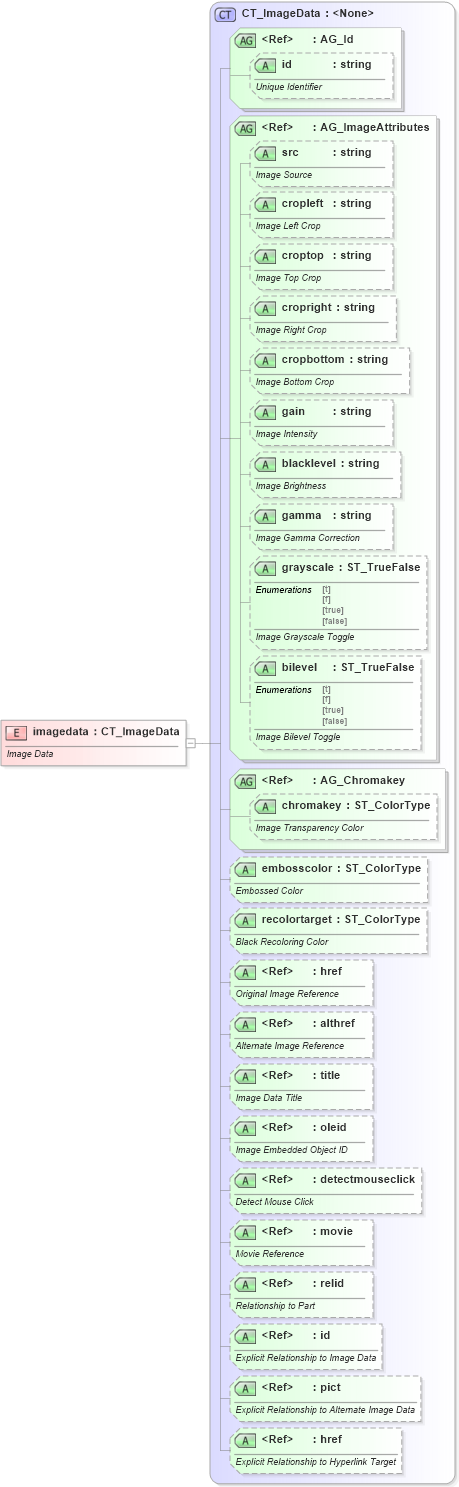

Collapse XSD Schema Diagram:
Drilldown into href in schema shared-relationshipreference_xsd Drilldown into pict in schema shared-relationshipreference_xsd Drilldown into id in schema shared-relationshipreference_xsd Drilldown into relid in schema vml-officedrawing_xsd Drilldown into movie in schema vml-officedrawing_xsd Drilldown into detectmouseclick in schema vml-officedrawing_xsd Drilldown into oleid in schema vml-officedrawing_xsd Drilldown into title in schema vml-officedrawing_xsd Drilldown into althref in schema vml-officedrawing_xsd Drilldown into href in schema vml-officedrawing_xsd Drilldown into recolortarget in schema vml-main_xsd Drilldown into embosscolor in schema vml-main_xsd Drilldown into chromakey in schema vml-main_xsd Drilldown into AG_Chromakey in schema vml-main_xsd Drilldown into bilevel in schema vml-main_xsd Drilldown into grayscale in schema vml-main_xsd Drilldown into gamma in schema vml-main_xsd Drilldown into blacklevel in schema vml-main_xsd Drilldown into gain in schema vml-main_xsd Drilldown into cropbottom in schema vml-main_xsd Drilldown into cropright in schema vml-main_xsd Drilldown into croptop in schema vml-main_xsd Drilldown into cropleft in schema vml-main_xsd Drilldown into src in schema vml-main_xsd Drilldown into AG_ImageAttributes in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsd Drilldown into CT_ImageData in schema vml-main_xsdXSD Diagram of imagedata in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="imagedata" type="CT_ImageData">
    <xsd:annotation>
        <xsd:documentation>Image Data</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
src v:src Optional
cropleft v:cropleft Optional
croptop v:croptop Optional
cropright v:cropright Optional
cropbottom v:cropbottom Optional
gain v:gain Optional
blacklevel v:blacklevel Optional
gamma v:gamma Optional
grayscale v:grayscale Optional
bilevel v:bilevel Optional
chromakey v:chromakey Optional
embosscolor v:embosscolor Optional
recolortarget v:recolortarget (Optional)
href o:href (Optional)
althref o:althref (Optional)
title o:title (Optional)
oleid o:oleid (Optional)
detectmouseclick o:detectmouseclick (Optional)
movie o:movie (Optional)
relid o:relid (Optional)
id r:id (Optional)
pict r:pict (Optional)
href r:href (Optional)
Collapse Derivation Tree:
