Definition Type: ComplexType
Name: CT_Legend
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

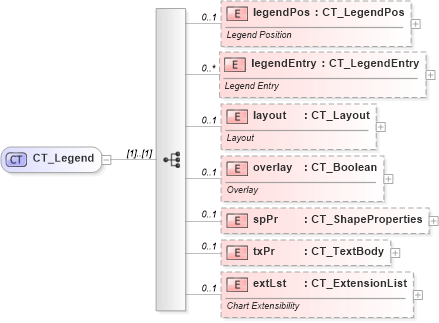

Drilldown into extLst in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into overlay in schema dml-chart_xsd Drilldown into layout in schema dml-chart_xsd Drilldown into legendEntry in schema dml-chart_xsd Drilldown into legendPos in schema dml-chart_xsdXSD Diagram of CT_Legend in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Legend">
    <xsd:sequence>
        <xsd:element name="legendPos" type="CT_LegendPos" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Legend Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="legendEntry" type="CT_LegendEntry" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Legend Entry</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="layout" type="CT_Layout" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Layout</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="overlay" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Overlay</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="txPr" type="a:CT_TextBody" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
legendPos nsA:legendPos 0 1
legendEntry nsA:legendEntry 0 unbounded
layout nsA:layout 0 1
overlay nsA:overlay 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:legend
