Definition Type: Element
Name: spPr
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Type: a:CT_ShapeProperties
Containing Schema: dml-chart.xsd
MinOccurs 0
MaxOccurs 1
Abstract

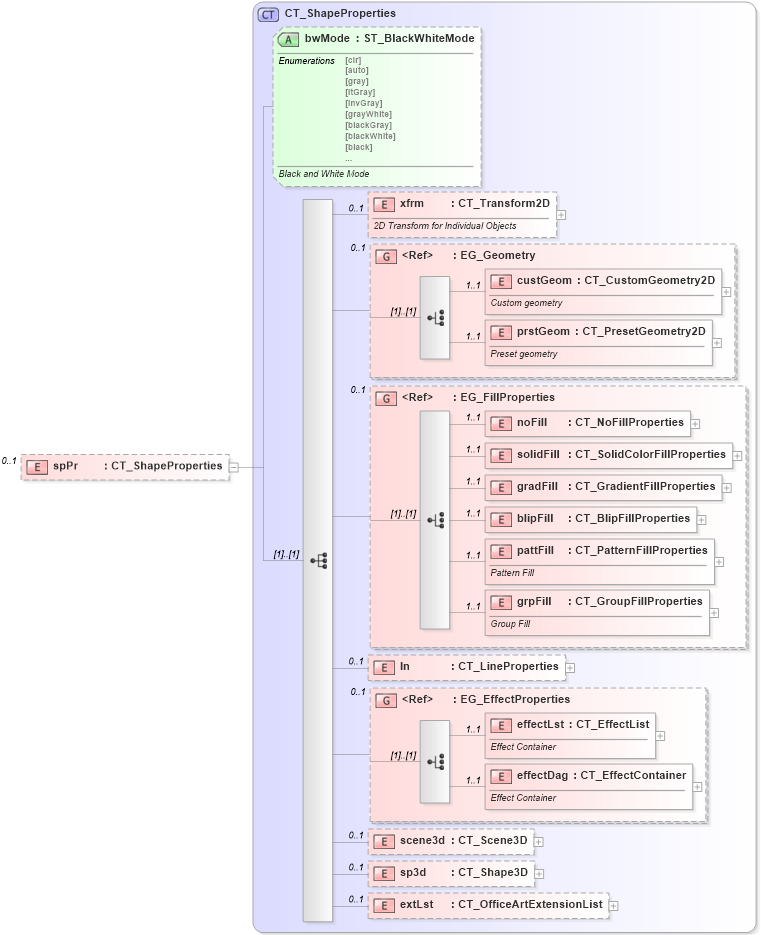

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-shapeproperties_xsd Drilldown into sp3d in schema dml-shapeproperties_xsd Drilldown into scene3d in schema dml-shapeproperties_xsd Drilldown into effectDag in schema dml-shapeeffects_xsd Drilldown into effectLst in schema dml-shapeeffects_xsd Drilldown into EG_EffectProperties in schema dml-shapeeffects_xsd Drilldown into ln in schema dml-shapeproperties_xsd Drilldown into grpFill in schema dml-shapeeffects_xsd Drilldown into pattFill in schema dml-shapeeffects_xsd Drilldown into blipFill in schema dml-shapeeffects_xsd Drilldown into gradFill in schema dml-shapeeffects_xsd Drilldown into solidFill in schema dml-shapeeffects_xsd Drilldown into noFill in schema dml-shapeeffects_xsd Drilldown into EG_FillProperties in schema dml-shapeeffects_xsd Drilldown into prstGeom in schema dml-shapegeometry_xsd Drilldown into custGeom in schema dml-shapegeometry_xsd Drilldown into EG_Geometry in schema dml-shapegeometry_xsd Drilldown into xfrm in schema dml-shapeproperties_xsd Drilldown into bwMode in schema dml-shapeproperties_xsd Drilldown into CT_ShapeProperties in schema dml-shapeproperties_xsdXSD Diagram of spPr in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
xfrm a:xfrm 0 1
custGeom a:custGeom 1 1
prstGeom a:prstGeom 1 1
noFill a:noFill 1 1
solidFill a:solidFill 1 1
gradFill a:gradFill 1 1
blipFill a:blipFill 1 1
pattFill a:pattFill 1 1
grpFill a:grpFill 1 1
ln a:ln 0 1
effectLst a:effectLst 1 1
effectDag a:effectDag 1 1
scene3d a:scene3d 0 1
sp3d a:sp3d 0 1
extLst a:extLst 0 1
<xs:group> a:EG_Geometry 0 1
<xs:group> a:EG_FillProperties 0 1
<xs:group> a:EG_EffectProperties 0 1
Collapse Child Attributes:
Name Type Default Value Use
bwMode a:bwMode Optional
Collapse Derivation Tree:
