Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ShapeProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeProperties.xsd
Abstract

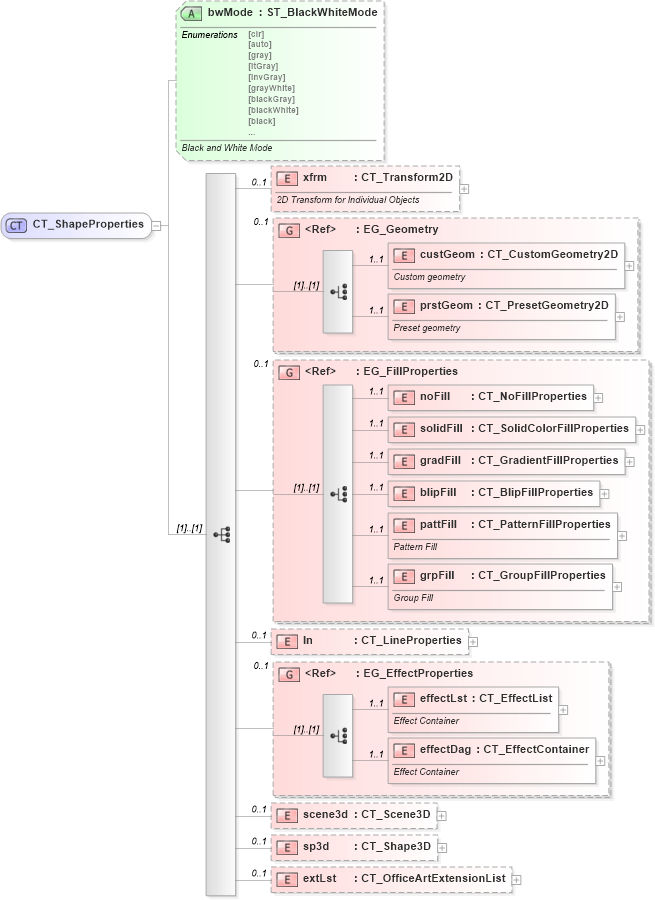

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-shapeproperties_xsd Drilldown into sp3d in schema dml-shapeproperties_xsd Drilldown into scene3d in schema dml-shapeproperties_xsd Drilldown into effectDag in schema dml-shapeeffects_xsd Drilldown into effectLst in schema dml-shapeeffects_xsd Drilldown into EG_EffectProperties in schema dml-shapeeffects_xsd Drilldown into ln in schema dml-shapeproperties_xsd Drilldown into grpFill in schema dml-shapeeffects_xsd Drilldown into pattFill in schema dml-shapeeffects_xsd Drilldown into blipFill in schema dml-shapeeffects_xsd Drilldown into gradFill in schema dml-shapeeffects_xsd Drilldown into solidFill in schema dml-shapeeffects_xsd Drilldown into noFill in schema dml-shapeeffects_xsd Drilldown into EG_FillProperties in schema dml-shapeeffects_xsd Drilldown into prstGeom in schema dml-shapegeometry_xsd Drilldown into custGeom in schema dml-shapegeometry_xsd Drilldown into EG_Geometry in schema dml-shapegeometry_xsd Drilldown into xfrm in schema dml-shapeproperties_xsd Drilldown into bwMode in schema dml-shapeproperties_xsdXSD Diagram of CT_ShapeProperties in schema dml-shapeproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ShapeProperties">
    <xsd:sequence>
        <xsd:element name="xfrm" type="CT_Transform2D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>2D Transform for Individual Objects</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="EG_Geometry" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="EG_FillProperties" minOccurs="0" maxOccurs="1" />
        <xsd:element name="ln" type="CT_LineProperties" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="EG_EffectProperties" minOccurs="0" maxOccurs="1" />
        <xsd:element name="scene3d" type="CT_Scene3D" minOccurs="0" maxOccurs="1" />
        <xsd:element name="sp3d" type="CT_Shape3D" minOccurs="0" maxOccurs="1" />
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="bwMode" type="ST_BlackWhiteMode" use="optional">
        <xsd:annotation>
            <xsd:documentation>Black and White Mode</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
xfrm a:xfrm 0 1
custGeom a:custGeom 1 1
prstGeom a:prstGeom 1 1
noFill a:noFill 1 1
solidFill a:solidFill 1 1
gradFill a:gradFill 1 1
blipFill a:blipFill 1 1
pattFill a:pattFill 1 1
grpFill a:grpFill 1 1
ln a:ln 0 1
effectLst a:effectLst 1 1
effectDag a:effectDag 1 1
scene3d a:scene3d 0 1
sp3d a:sp3d 0 1
extLst a:extLst 0 1
<xs:group> a:EG_Geometry 0 1
<xs:group> a:EG_FillProperties 0 1
<xs:group> a:EG_EffectProperties 0 1
Collapse Child Attributes:
Name Type Default Value Use
bwMode a:bwMode Optional
Collapse Derivation Tree:
Collapse References:
nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, cdr:spPr, nsA:spPr, cdr:spPr, cdr:spPr, nsC:spPr, a:spPr, a:spPr, a:spPr, nsE:spPr, nsF:spPr, nsF:spPr, nsF:spPr, nsA:spPr, a:spPr, p:spPr, p:spPr, p:spPrnsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr, nsA:spPr,
