Definition Type: ComplexType
Name: CT_Otherwise
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract
Collapse XSD Schema Diagram:

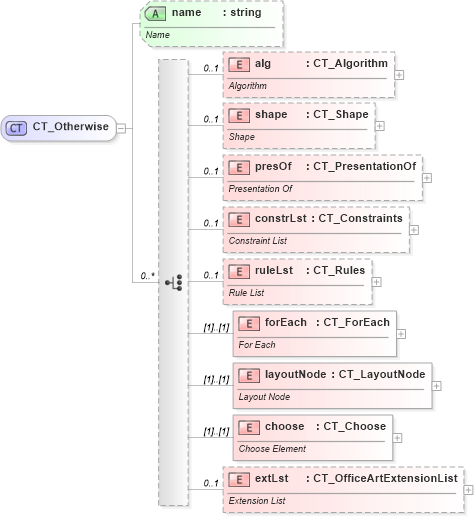

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into choose in schema dml-diagramdefinition_xsd Drilldown into layoutNode in schema dml-diagramdefinition_xsd Drilldown into forEach in schema dml-diagramdefinition_xsd Drilldown into ruleLst in schema dml-diagramdefinition_xsd Drilldown into constrLst in schema dml-diagramdefinition_xsd Drilldown into presOf in schema dml-diagramdefinition_xsd Drilldown into shape in schema dml-diagramdefinition_xsd Drilldown into alg in schema dml-diagramdefinition_xsd Drilldown into name in schema dml-diagramdefinition_xsdXSD Diagram of CT_Otherwise in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Otherwise">
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
        <xsd:element name="alg" type="CT_Algorithm" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Algorithm</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="shape" type="CT_Shape" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="presOf" type="CT_PresentationOf" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Presentation Of</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="constrLst" type="CT_Constraints" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Constraint List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ruleLst" type="CT_Rules" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Rule List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="forEach" type="CT_ForEach">
            <xsd:annotation>
                <xsd:documentation>For Each</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="layoutNode" type="CT_LayoutNode">
            <xsd:annotation>
                <xsd:documentation>Layout Node</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="choose" type="CT_Choose">
            <xsd:annotation>
                <xsd:documentation>Choose Element</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Extension List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="name" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
alg nsC:alg 0 1
shape nsC:shape 0 1
presOf nsC:presOf 0 1
constrLst nsC:constrLst 0 1
ruleLst nsC:ruleLst 0 1
forEach nsC:forEach (1) (1)
layoutNode nsC:layoutNode (1) (1)
choose nsC:choose (1) (1)
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name nsC:name Optional
Collapse Derivation Tree:
Collapse References:
nsC:else
