Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: shape
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_Shape
Containing Schema: dml-diagramDefinition.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Shape
Collapse XSD Schema Diagram:

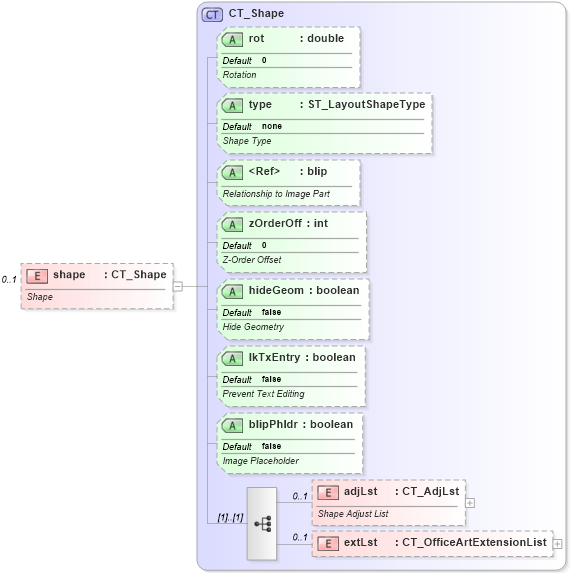

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into adjLst in schema dml-diagramdefinition_xsd Drilldown into blipPhldr in schema dml-diagramdefinition_xsd Drilldown into lkTxEntry in schema dml-diagramdefinition_xsd Drilldown into hideGeom in schema dml-diagramdefinition_xsd Drilldown into zOrderOff in schema dml-diagramdefinition_xsd Drilldown into blip in schema shared-relationshipreference_xsd Drilldown into type in schema dml-diagramdefinition_xsd Drilldown into rot in schema dml-diagramdefinition_xsd Drilldown into CT_Shape in schema dml-diagramdefinition_xsdXSD Diagram of shape in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="shape" type="CT_Shape" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Shape</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
adjLst nsC:adjLst 0 1
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
rot nsC:rot 0 Optional
type nsC:type none Optional
blip r:blip Optional
zOrderOff nsC:zOrderOff 0 Optional
hideGeom nsC:hideGeom false Optional
lkTxEntry nsC:lkTxEntry false Optional
blipPhldr nsC:blipPhldr false Optional
Collapse Derivation Tree:
Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
