Definition Type: ComplexType
Name: CT_Shape
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract
Collapse XSD Schema Diagram:

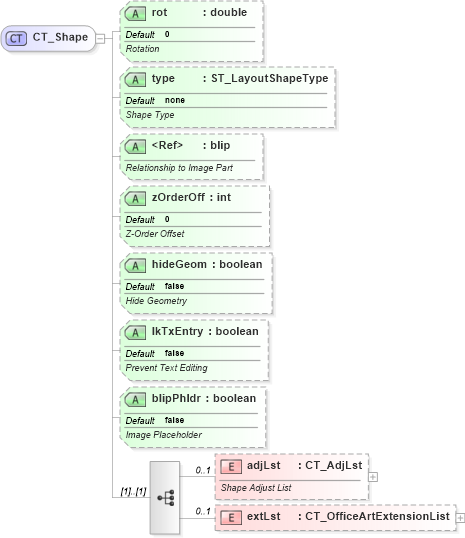

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into adjLst in schema dml-diagramdefinition_xsd Drilldown into blipPhldr in schema dml-diagramdefinition_xsd Drilldown into lkTxEntry in schema dml-diagramdefinition_xsd Drilldown into hideGeom in schema dml-diagramdefinition_xsd Drilldown into zOrderOff in schema dml-diagramdefinition_xsd Drilldown into blip in schema shared-relationshipreference_xsd Drilldown into type in schema dml-diagramdefinition_xsd Drilldown into rot in schema dml-diagramdefinition_xsdXSD Diagram of CT_Shape in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Shape">
    <xsd:sequence>
        <xsd:element name="adjLst" type="CT_AdjLst" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Adjust List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="rot" type="xsd:double" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Rotation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="ST_LayoutShapeType" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>Shape Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="r:blip" use="optional">
        <xsd:annotation>
            <xsd:documentation>Relationship to Image Part</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="zOrderOff" type="xsd:int" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Z-Order Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hideGeom" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Hide Geometry</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="lkTxEntry" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Prevent Text Editing</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="blipPhldr" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Image Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
adjLst nsC:adjLst 0 1
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
rot nsC:rot 0 Optional
type nsC:type none Optional
blip r:blip Optional
zOrderOff nsC:zOrderOff 0 Optional
hideGeom nsC:hideGeom false Optional
lkTxEntry nsC:lkTxEntry false Optional
blipPhldr nsC:blipPhldr false Optional
