Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Path
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd
Abstract

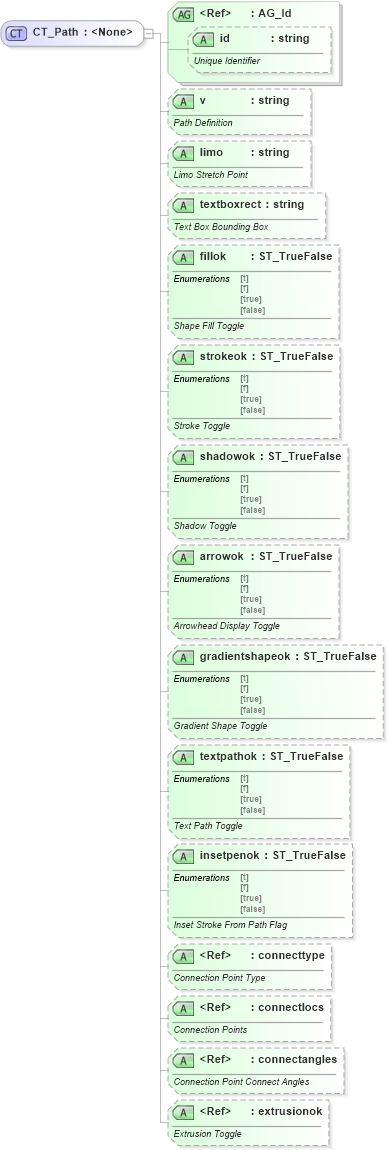

Collapse XSD Schema Diagram:
Drilldown into extrusionok in schema vml-officedrawing_xsd Drilldown into connectangles in schema vml-officedrawing_xsd Drilldown into connectlocs in schema vml-officedrawing_xsd Drilldown into connecttype in schema vml-officedrawing_xsd Drilldown into insetpenok in schema vml-main_xsd Drilldown into textpathok in schema vml-main_xsd Drilldown into gradientshapeok in schema vml-main_xsd Drilldown into arrowok in schema vml-main_xsd Drilldown into shadowok in schema vml-main_xsd Drilldown into strokeok in schema vml-main_xsd Drilldown into fillok in schema vml-main_xsd Drilldown into textboxrect in schema vml-main_xsd Drilldown into limo in schema vml-main_xsd Drilldown into v in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsdXSD Diagram of CT_Path in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Path">
    <xsd:attributeGroup ref="AG_Id" />
    <xsd:attribute name="v" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Path Definition</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="limo" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Limo Stretch Point</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="textboxrect" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Box Bounding Box</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fillok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Fill Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="strokeok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Stroke Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="shadowok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="arrowok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Arrowhead Display Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="gradientshapeok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Gradient Shape Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="textpathok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Path Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="insetpenok" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Inset Stroke From Path Flag</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:connecttype">
        <xsd:annotation>
            <xsd:documentation>Connection Point Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:connectlocs">
        <xsd:annotation>
            <xsd:documentation>Connection Points</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:connectangles">
        <xsd:annotation>
            <xsd:documentation>Connection Point Connect Angles</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute ref="o:extrusionok">
        <xsd:annotation>
            <xsd:documentation>Extrusion Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
v v:v Optional
limo v:limo Optional
textboxrect v:textboxrect Optional
fillok v:fillok Optional
strokeok v:strokeok Optional
shadowok v:shadowok Optional
arrowok v:arrowok Optional
gradientshapeok v:gradientshapeok Optional
textpathok v:textpathok Optional
insetpenok v:insetpenok Optional
connecttype o:connecttype (Optional)
connectlocs o:connectlocs (Optional)
connectangles o:connectangles (Optional)
extrusionok o:extrusionok (Optional)
Collapse Derivation Tree:
Collapse References:
v:path
