Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: path
Namespace: urn:schemas-microsoft-com:vml
Type: v:CT_Path
Containing Schema: vml-main.xsd
Abstract
Documentation:
Shape Path

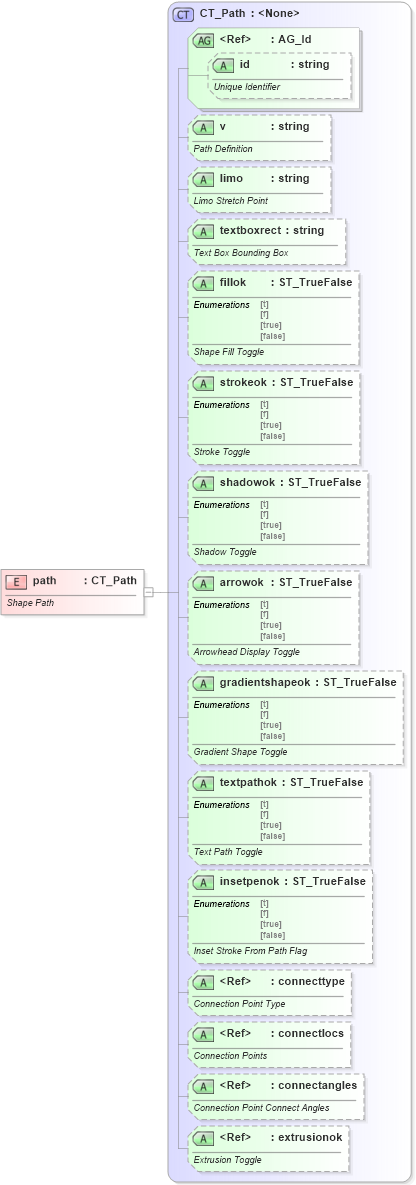

Collapse XSD Schema Diagram:
Drilldown into extrusionok in schema vml-officedrawing_xsd Drilldown into connectangles in schema vml-officedrawing_xsd Drilldown into connectlocs in schema vml-officedrawing_xsd Drilldown into connecttype in schema vml-officedrawing_xsd Drilldown into insetpenok in schema vml-main_xsd Drilldown into textpathok in schema vml-main_xsd Drilldown into gradientshapeok in schema vml-main_xsd Drilldown into arrowok in schema vml-main_xsd Drilldown into shadowok in schema vml-main_xsd Drilldown into strokeok in schema vml-main_xsd Drilldown into fillok in schema vml-main_xsd Drilldown into textboxrect in schema vml-main_xsd Drilldown into limo in schema vml-main_xsd Drilldown into v in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsd Drilldown into CT_Path in schema vml-main_xsdXSD Diagram of path in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="path" type="CT_Path">
    <xsd:annotation>
        <xsd:documentation>Shape Path</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
v v:v Optional
limo v:limo Optional
textboxrect v:textboxrect Optional
fillok v:fillok Optional
strokeok v:strokeok Optional
shadowok v:shadowok Optional
arrowok v:arrowok Optional
gradientshapeok v:gradientshapeok Optional
textpathok v:textpathok Optional
insetpenok v:insetpenok Optional
connecttype o:connecttype (Optional)
connectlocs o:connectlocs (Optional)
connectangles o:connectangles (Optional)
extrusionok o:extrusionok (Optional)
Collapse Derivation Tree:
