Definition Type: ComplexType
Name: CT_Picture
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chartDrawing
Containing Schema: dml-chartDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

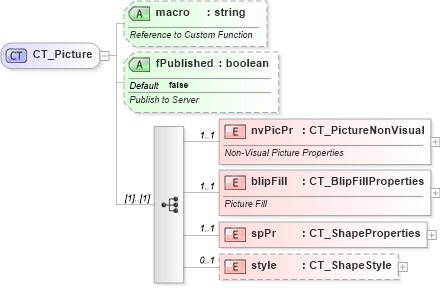

Drilldown into style in schema dml-chartdrawing_xsd Drilldown into spPr in schema dml-chartdrawing_xsd Drilldown into blipFill in schema dml-chartdrawing_xsd Drilldown into nvPicPr in schema dml-chartdrawing_xsd Drilldown into fPublished in schema dml-chartdrawing_xsd Drilldown into macro in schema dml-chartdrawing_xsdXSD Diagram of CT_Picture in schema dml-chartdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Picture">
    <xsd:sequence>
        <xsd:element name="nvPicPr" type="CT_PictureNonVisual" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Picture Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="blipFill" type="a:CT_BlipFillProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Picture Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="1" maxOccurs="1" />
        <xsd:element name="style" type="a:CT_ShapeStyle" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="macro" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Reference to Custom Function</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fPublished" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Publish to Server</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvPicPr cdr:nvPicPr 1 1
blipFill cdr:blipFill 1 1
spPr cdr:spPr 1 1
style cdr:style 0 1
Collapse Child Attributes:
Name Type Default Value Use
macro cdr:macro Optional
fPublished cdr:fPublished false Optional
Collapse Derivation Tree:
Collapse References:
cdr:pic, cdr:pic
