Definition Type: Element
Name: pic
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chartDrawing
Type: cdr:CT_Picture
Containing Schema: dml-chartDrawing.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Collapse XSD Schema Diagram:

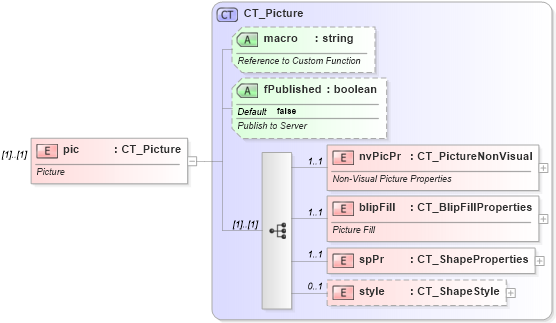

Drilldown into style in schema dml-chartdrawing_xsd Drilldown into spPr in schema dml-chartdrawing_xsd Drilldown into blipFill in schema dml-chartdrawing_xsd Drilldown into nvPicPr in schema dml-chartdrawing_xsd Drilldown into fPublished in schema dml-chartdrawing_xsd Drilldown into macro in schema dml-chartdrawing_xsd Drilldown into CT_Picture in schema dml-chartdrawing_xsdXSD Diagram of pic in schema dml-chartdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="pic" type="CT_Picture">
    <xsd:annotation>
        <xsd:documentation>Picture</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvPicPr cdr:nvPicPr 1 1
blipFill cdr:blipFill 1 1
spPr cdr:spPr 1 1
style cdr:style 0 1
Collapse Child Attributes:
Name Type Default Value Use
macro cdr:macro Optional
fPublished cdr:fPublished false Optional
