Definition Type: ComplexType
Name: CT_Picture
Namespace: http://schemas.openxmlformats.org/drawingml/2006/picture
Containing Schema: dml-picture.xsd
Abstract
Collapse XSD Schema Diagram:

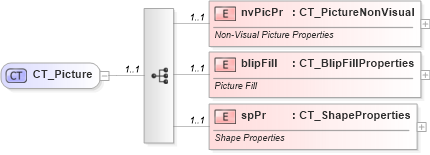

Drilldown into spPr in schema dml-picture_xsd Drilldown into blipFill in schema dml-picture_xsd Drilldown into nvPicPr in schema dml-picture_xsdXSD Diagram of CT_Picture in schema dml-picture_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Picture">
    <xsd:sequence minOccurs="1" maxOccurs="1">
        <xsd:element name="nvPicPr" type="CT_PictureNonVisual" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Picture Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="blipFill" type="a:CT_BlipFillProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Picture Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvPicPr nsE:nvPicPr 1 1
blipFill nsE:blipFill 1 1
spPr nsE:spPr 1 1
Collapse Derivation Tree:
Collapse References:
nsE:pic
