Definition Type: Element
Name: pic
Namespace: http://schemas.openxmlformats.org/drawingml/2006/picture
Type: nsE:CT_Picture
Containing Schema: dml-picture.xsd
Abstract
Documentation:

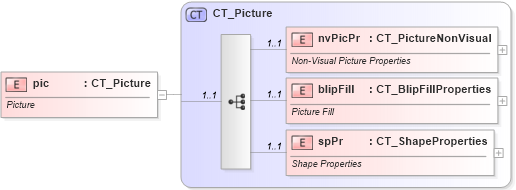

Collapse XSD Schema Diagram:
Drilldown into spPr in schema dml-picture_xsd Drilldown into blipFill in schema dml-picture_xsd Drilldown into nvPicPr in schema dml-picture_xsd Drilldown into CT_Picture in schema dml-picture_xsdXSD Diagram of pic in schema dml-picture_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="pic" type="CT_Picture">
    <xsd:annotation>
        <xsd:documentation>Picture</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvPicPr nsE:nvPicPr 1 1
blipFill nsE:blipFill 1 1
spPr nsE:spPr 1 1
Collapse Derivation Tree:
