Definition Type: ComplexType
Name: CT_PieSer
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

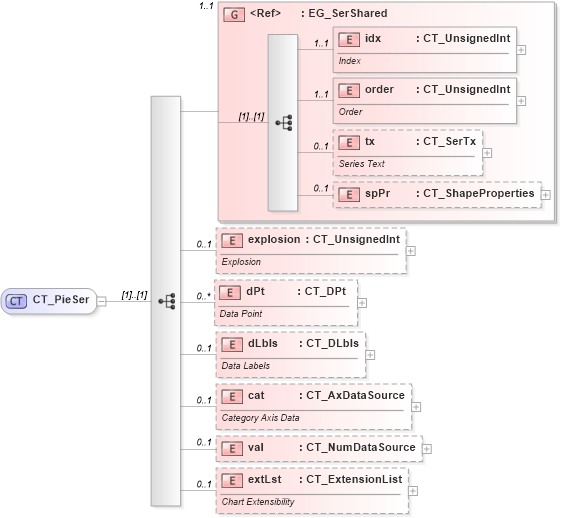

Drilldown into extLst in schema dml-chart_xsd Drilldown into val in schema dml-chart_xsd Drilldown into cat in schema dml-chart_xsd Drilldown into dLbls in schema dml-chart_xsd Drilldown into dPt in schema dml-chart_xsd Drilldown into explosion in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into tx in schema dml-chart_xsd Drilldown into order in schema dml-chart_xsd Drilldown into idx in schema dml-chart_xsd Drilldown into EG_SerShared in schema dml-chart_xsdXSD Diagram of CT_PieSer in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PieSer">
    <xsd:sequence>
        <xsd:group ref="EG_SerShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="explosion" type="CT_UnsignedInt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Explosion</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dPt" type="CT_DPt" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Data Point</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dLbls" type="CT_DLbls" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Labels</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cat" type="CT_AxDataSource" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Category Axis Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="val" type="CT_NumDataSource" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idx nsA:idx 1 1
order nsA:order 1 1
tx nsA:tx 0 1
spPr nsA:spPr 0 1
explosion nsA:explosion 0 1
dPt nsA:dPt 0 unbounded
dLbls nsA:dLbls 0 1
cat nsA:cat 0 1
val nsA:val 0 1
extLst nsA:extLst 0 1
<xs:group> nsA:EG_SerShared 1 1
