Definition Type: ComplexType
Name: CT_PresetShadowEffect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd
Abstract

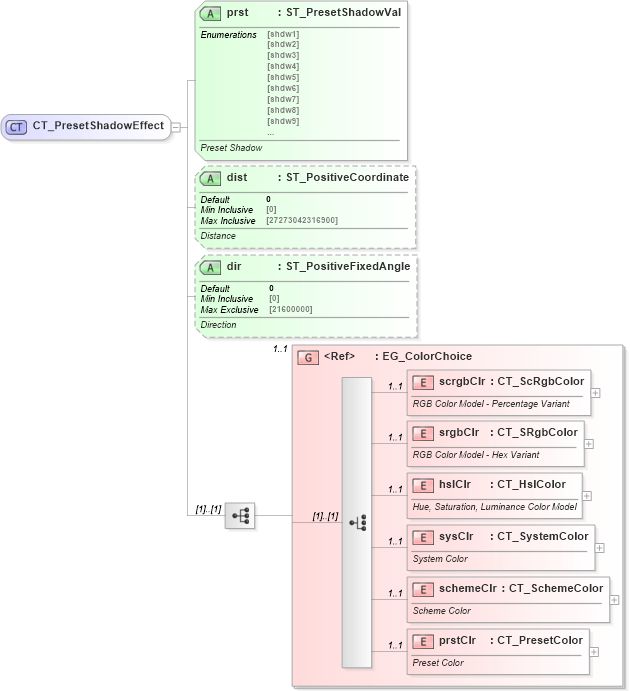

Collapse XSD Schema Diagram:
Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsd Drilldown into EG_ColorChoice in schema dml-basetypes_xsd Drilldown into dir in schema dml-shapeeffects_xsd Drilldown into dist in schema dml-shapeeffects_xsd Drilldown into prst in schema dml-shapeeffects_xsdXSD Diagram of CT_PresetShadowEffect in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PresetShadowEffect">
    <xsd:sequence>
        <xsd:group ref="EG_ColorChoice" minOccurs="1" maxOccurs="1">
        </xsd:group>
    </xsd:sequence>
    <xsd:attribute name="prst" type="ST_PresetShadowVal" use="required">
        <xsd:annotation>
            <xsd:documentation>Preset Shadow</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dist" type="ST_PositiveCoordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Distance</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dir" type="ST_PositiveFixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Direction</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
<xs:group> a:EG_ColorChoice 1 1
Collapse Child Attributes:
Name Type Default Value Use
prst a:prst Required
dist a:dist 0 Optional
dir a:dir 0 Optional
Collapse Derivation Tree:
Collapse References:
a:prstShdw, a:prstShdw
