Definition Type: ComplexType
Name: CT_Pt
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDataModel.xsd
Abstract

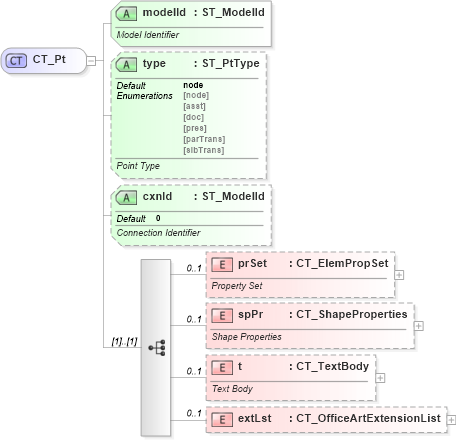

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-diagramdatamodel_xsd Drilldown into t in schema dml-diagramdatamodel_xsd Drilldown into spPr in schema dml-diagramdatamodel_xsd Drilldown into prSet in schema dml-diagramdatamodel_xsd Drilldown into cxnId in schema dml-diagramdatamodel_xsd Drilldown into type in schema dml-diagramdatamodel_xsd Drilldown into modelId in schema dml-diagramdatamodel_xsdXSD Diagram of CT_Pt in schema dml-diagramdatamodel_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Pt">
    <xsd:sequence>
        <xsd:element name="prSet" type="CT_ElemPropSet" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Property Set</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="t" type="a:CT_TextBody" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Text Body</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="modelId" type="ST_ModelId" use="required">
        <xsd:annotation>
            <xsd:documentation>Model Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="ST_PtType" use="optional" default="node">
        <xsd:annotation>
            <xsd:documentation>Point Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="cxnId" type="ST_ModelId" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Connection Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
prSet nsC:prSet 0 1
spPr nsC:spPr 0 1
t nsC:t 0 1
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
modelId nsC:modelId Required
type nsC:type node Optional
cxnId nsC:cxnId 0 Optional
Collapse Derivation Tree:
Collapse References:
nsC:pt
