Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: pt
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_Pt
Containing Schema: dml-diagramDataModel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Point

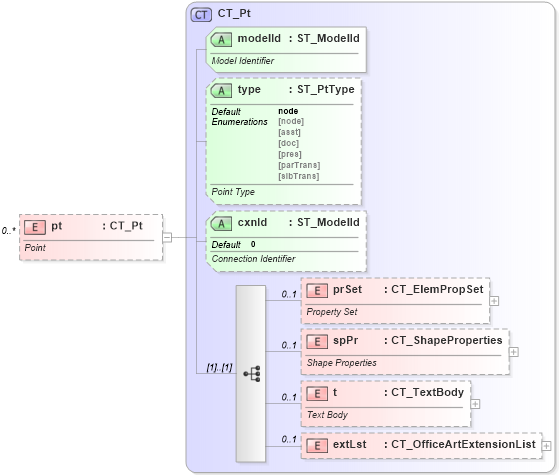

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-diagramdatamodel_xsd Drilldown into t in schema dml-diagramdatamodel_xsd Drilldown into spPr in schema dml-diagramdatamodel_xsd Drilldown into prSet in schema dml-diagramdatamodel_xsd Drilldown into cxnId in schema dml-diagramdatamodel_xsd Drilldown into type in schema dml-diagramdatamodel_xsd Drilldown into modelId in schema dml-diagramdatamodel_xsd Drilldown into CT_Pt in schema dml-diagramdatamodel_xsdXSD Diagram of pt in schema dml-diagramdatamodel_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="pt" type="CT_Pt" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Point</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
prSet nsC:prSet 0 1
spPr nsC:spPr 0 1
t nsC:t 0 1
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
modelId nsC:modelId Required
type nsC:type node Optional
cxnId nsC:cxnId 0 Optional
Collapse Derivation Tree:
