Definition Type: ComplexType
Name: CT_ReflectionEffect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd
Abstract
Collapse XSD Schema Diagram:

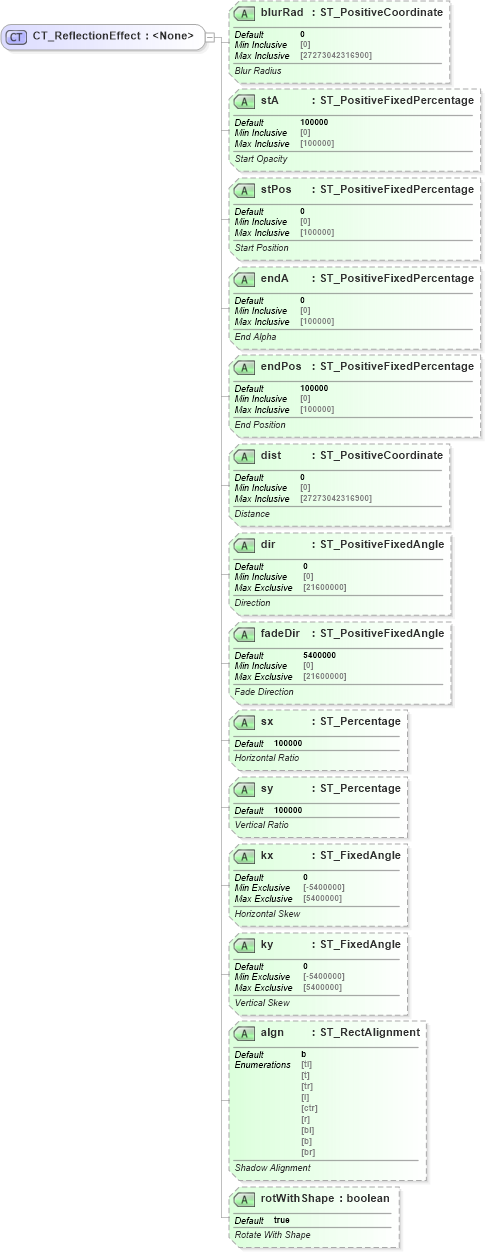

Drilldown into rotWithShape in schema dml-shapeeffects_xsd Drilldown into algn in schema dml-shapeeffects_xsd Drilldown into ky in schema dml-shapeeffects_xsd Drilldown into kx in schema dml-shapeeffects_xsd Drilldown into sy in schema dml-shapeeffects_xsd Drilldown into sx in schema dml-shapeeffects_xsd Drilldown into fadeDir in schema dml-shapeeffects_xsd Drilldown into dir in schema dml-shapeeffects_xsd Drilldown into dist in schema dml-shapeeffects_xsd Drilldown into endPos in schema dml-shapeeffects_xsd Drilldown into endA in schema dml-shapeeffects_xsd Drilldown into stPos in schema dml-shapeeffects_xsd Drilldown into stA in schema dml-shapeeffects_xsd Drilldown into blurRad in schema dml-shapeeffects_xsdXSD Diagram of CT_ReflectionEffect in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ReflectionEffect">
    <xsd:attribute name="blurRad" type="ST_PositiveCoordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Blur Radius</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="stA" type="ST_PositiveFixedPercentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>Start Opacity</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="stPos" type="ST_PositiveFixedPercentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Start Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endA" type="ST_PositiveFixedPercentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>End Alpha</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="endPos" type="ST_PositiveFixedPercentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>End Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dist" type="ST_PositiveCoordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Distance</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dir" type="ST_PositiveFixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Direction</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fadeDir" type="ST_PositiveFixedAngle" use="optional" default="5400000">
        <xsd:annotation>
            <xsd:documentation>Fade Direction</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sx" type="ST_Percentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>Horizontal Ratio</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sy" type="ST_Percentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>Vertical Ratio</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="kx" type="ST_FixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Horizontal Skew</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ky" type="ST_FixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Vertical Skew</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="algn" type="ST_RectAlignment" use="optional" default="b">
        <xsd:annotation>
            <xsd:documentation>Shadow Alignment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rotWithShape" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Rotate With Shape</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
blurRad a:blurRad 0 Optional
stA a:stA 100000 Optional
stPos a:stPos 0 Optional
endA a:endA 0 Optional
endPos a:endPos 100000 Optional
dist a:dist 0 Optional
dir a:dir 0 Optional
fadeDir a:fadeDir 5400000 Optional
sx a:sx 100000 Optional
sy a:sy 100000 Optional
kx a:kx 0 Optional
ky a:ky 0 Optional
algn a:algn b Optional
rotWithShape a:rotWithShape true Optional
Collapse Derivation Tree:
Collapse References:
a:reflection, a:reflection
