Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: reflection
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_ReflectionEffect
Containing Schema: dml-shapeEffects.xsd
MinOccurs 0
MaxOccurs 1
Abstract

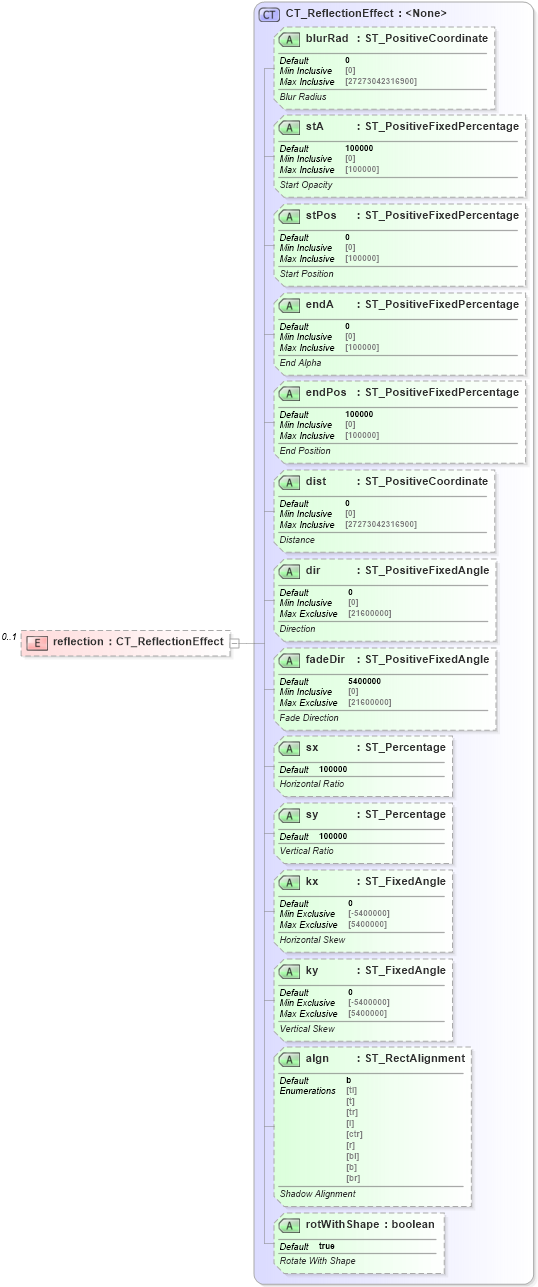

Collapse XSD Schema Diagram:
Drilldown into rotWithShape in schema dml-shapeeffects_xsd Drilldown into algn in schema dml-shapeeffects_xsd Drilldown into ky in schema dml-shapeeffects_xsd Drilldown into kx in schema dml-shapeeffects_xsd Drilldown into sy in schema dml-shapeeffects_xsd Drilldown into sx in schema dml-shapeeffects_xsd Drilldown into fadeDir in schema dml-shapeeffects_xsd Drilldown into dir in schema dml-shapeeffects_xsd Drilldown into dist in schema dml-shapeeffects_xsd Drilldown into endPos in schema dml-shapeeffects_xsd Drilldown into endA in schema dml-shapeeffects_xsd Drilldown into stPos in schema dml-shapeeffects_xsd Drilldown into stA in schema dml-shapeeffects_xsd Drilldown into blurRad in schema dml-shapeeffects_xsd Drilldown into CT_ReflectionEffect in schema dml-shapeeffects_xsdXSD Diagram of reflection in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="reflection" type="CT_ReflectionEffect" minOccurs="0" maxOccurs="1" />
Collapse Child Attributes:
Name Type Default Value Use
blurRad a:blurRad 0 Optional
stA a:stA 100000 Optional
stPos a:stPos 0 Optional
endA a:endA 0 Optional
endPos a:endPos 100000 Optional
dist a:dist 0 Optional
dir a:dir 0 Optional
fadeDir a:fadeDir 5400000 Optional
sx a:sx 100000 Optional
sy a:sy 100000 Optional
kx a:kx 0 Optional
ky a:ky 0 Optional
algn a:algn b Optional
rotWithShape a:rotWithShape true Optional
Collapse Derivation Tree:
