Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_RElt
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sharedStringTable.xsd
Abstract
Collapse XSD Schema Diagram:

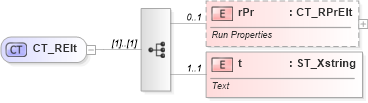

Drilldown into t in schema sml-sharedstringtable_xsd Drilldown into rPr in schema sml-sharedstringtable_xsdXSD Diagram of CT_RElt in schema sml-sharedstringtable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_RElt">
    <xsd:sequence>
        <xsd:element name="rPr" type="CT_RPrElt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Run Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="t" type="ST_Xstring" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Text</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rPr nsM:rPr 0 1
t nsM:t 1 1
Collapse Derivation Tree:
Collapse References:
nsM:r
