Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: rPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_RPrElt
Containing Schema: sml-sharedStringTable.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Run Properties

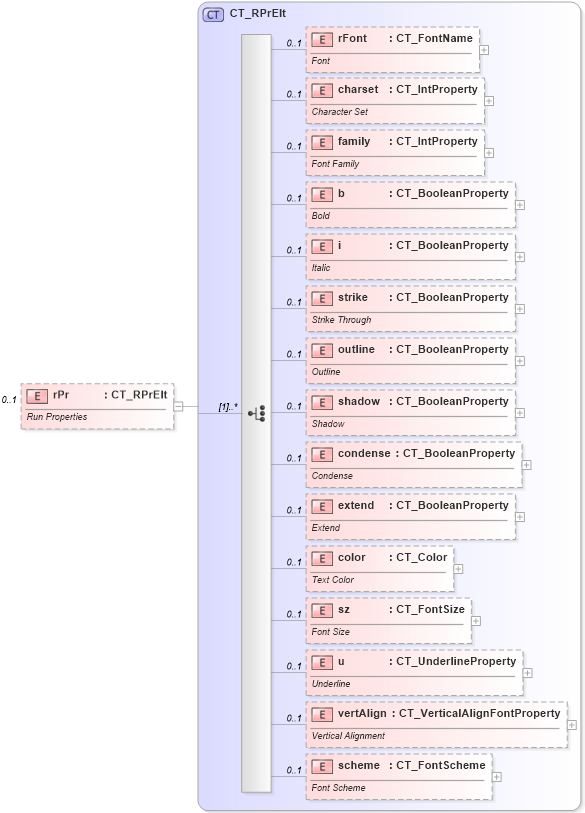

Collapse XSD Schema Diagram:
Drilldown into scheme in schema sml-sharedstringtable_xsd Drilldown into vertAlign in schema sml-sharedstringtable_xsd Drilldown into u in schema sml-sharedstringtable_xsd Drilldown into sz in schema sml-sharedstringtable_xsd Drilldown into color in schema sml-sharedstringtable_xsd Drilldown into extend in schema sml-sharedstringtable_xsd Drilldown into condense in schema sml-sharedstringtable_xsd Drilldown into shadow in schema sml-sharedstringtable_xsd Drilldown into outline in schema sml-sharedstringtable_xsd Drilldown into strike in schema sml-sharedstringtable_xsd Drilldown into i in schema sml-sharedstringtable_xsd Drilldown into b in schema sml-sharedstringtable_xsd Drilldown into family in schema sml-sharedstringtable_xsd Drilldown into charset in schema sml-sharedstringtable_xsd Drilldown into rFont in schema sml-sharedstringtable_xsd Drilldown into CT_RPrElt in schema sml-sharedstringtable_xsdXSD Diagram of rPr in schema sml-sharedstringtable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="rPr" type="CT_RPrElt" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Run Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rFont nsM:rFont 0 1
charset nsM:charset 0 1
family nsM:family 0 1
b nsM:b 0 1
i nsM:i 0 1
strike nsM:strike 0 1
outline nsM:outline 0 1
shadow nsM:shadow 0 1
condense nsM:condense 0 1
extend nsM:extend 0 1
color nsM:color 0 1
sz nsM:sz 0 1
u nsM:u 0 1
vertAlign nsM:vertAlign 0 1
scheme nsM:scheme 0 1
Collapse Derivation Tree:
