Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_RPrElt
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sharedStringTable.xsd
Abstract

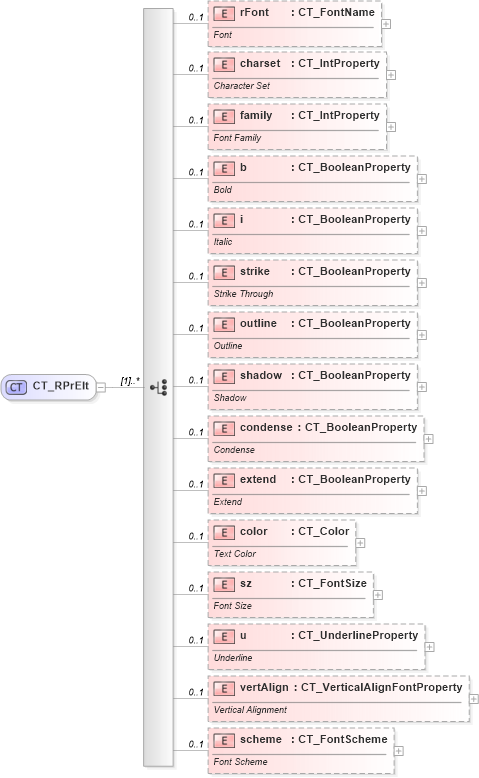

Collapse XSD Schema Diagram:
Drilldown into scheme in schema sml-sharedstringtable_xsd Drilldown into vertAlign in schema sml-sharedstringtable_xsd Drilldown into u in schema sml-sharedstringtable_xsd Drilldown into sz in schema sml-sharedstringtable_xsd Drilldown into color in schema sml-sharedstringtable_xsd Drilldown into extend in schema sml-sharedstringtable_xsd Drilldown into condense in schema sml-sharedstringtable_xsd Drilldown into shadow in schema sml-sharedstringtable_xsd Drilldown into outline in schema sml-sharedstringtable_xsd Drilldown into strike in schema sml-sharedstringtable_xsd Drilldown into i in schema sml-sharedstringtable_xsd Drilldown into b in schema sml-sharedstringtable_xsd Drilldown into family in schema sml-sharedstringtable_xsd Drilldown into charset in schema sml-sharedstringtable_xsd Drilldown into rFont in schema sml-sharedstringtable_xsdXSD Diagram of CT_RPrElt in schema sml-sharedstringtable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_RPrElt">
    <xsd:choice maxOccurs="unbounded">
        <xsd:element name="rFont" type="CT_FontName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="charset" type="CT_IntProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Character Set</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="family" type="CT_IntProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font Family</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="b" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bold</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="i" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Italic</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="strike" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Strike Through</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="outline" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Outline</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="shadow" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shadow</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="condense" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Condense</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extend" type="CT_BooleanProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Extend</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="color" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Text Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sz" type="CT_FontSize" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="u" type="CT_UnderlineProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Underline</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="vertAlign" type="CT_VerticalAlignFontProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Vertical Alignment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="scheme" type="CT_FontScheme" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font Scheme</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rFont nsM:rFont 0 1
charset nsM:charset 0 1
family nsM:family 0 1
b nsM:b 0 1
i nsM:i 0 1
strike nsM:strike 0 1
outline nsM:outline 0 1
shadow nsM:shadow 0 1
condense nsM:condense 0 1
extend nsM:extend 0 1
color nsM:color 0 1
sz nsM:sz 0 1
u nsM:u 0 1
vertAlign nsM:vertAlign 0 1
scheme nsM:scheme 0 1
Collapse Derivation Tree:
Collapse References:
nsM:rPr
