Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_SerAx
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

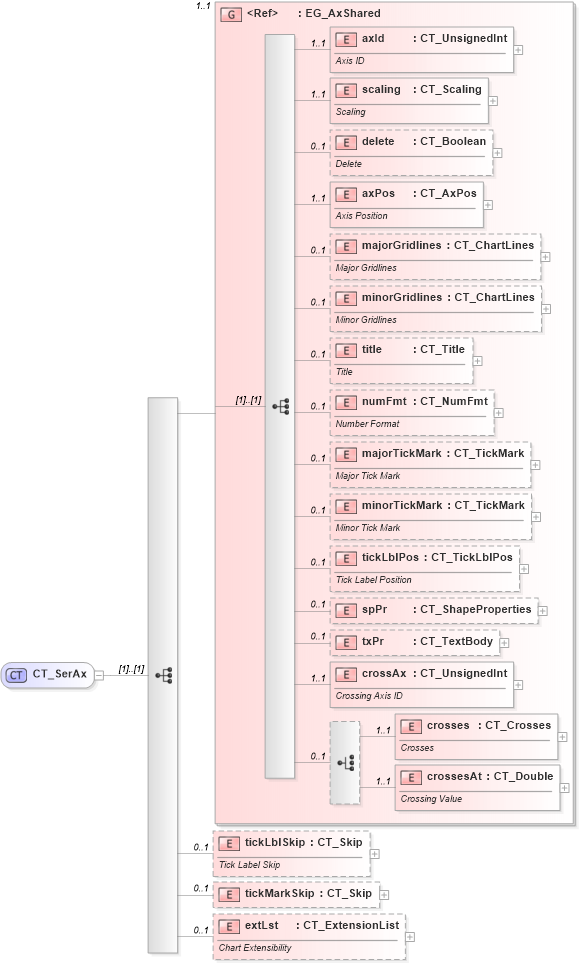

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into tickMarkSkip in schema dml-chart_xsd Drilldown into tickLblSkip in schema dml-chart_xsd Drilldown into crossesAt in schema dml-chart_xsd Drilldown into crosses in schema dml-chart_xsd Drilldown into crossAx in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into tickLblPos in schema dml-chart_xsd Drilldown into minorTickMark in schema dml-chart_xsd Drilldown into majorTickMark in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsd Drilldown into title in schema dml-chart_xsd Drilldown into minorGridlines in schema dml-chart_xsd Drilldown into majorGridlines in schema dml-chart_xsd Drilldown into axPos in schema dml-chart_xsd Drilldown into delete in schema dml-chart_xsd Drilldown into scaling in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into EG_AxShared in schema dml-chart_xsdXSD Diagram of CT_SerAx in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_SerAx">
    <xsd:sequence>
        <xsd:group ref="EG_AxShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="tickLblSkip" type="CT_Skip" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Tick Label Skip</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tickMarkSkip" type="CT_Skip" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
axId nsA:axId 1 1
scaling nsA:scaling 1 1
delete nsA:delete 0 1
axPos nsA:axPos 1 1
majorGridlines nsA:majorGridlines 0 1
minorGridlines nsA:minorGridlines 0 1
title nsA:title 0 1
numFmt nsA:numFmt 0 1
majorTickMark nsA:majorTickMark 0 1
minorTickMark nsA:minorTickMark 0 1
tickLblPos nsA:tickLblPos 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
crossAx nsA:crossAx 1 1
crosses nsA:crosses 1 1
crossesAt nsA:crossesAt 1 1
tickLblSkip nsA:tickLblSkip 0 1
tickMarkSkip nsA:tickMarkSkip 0 1
extLst nsA:extLst 0 1
<xs:group> nsA:EG_AxShared 1 1
Collapse Derivation Tree:
Collapse References:
nsA:serAx
