Definition Type: ComplexType
Name: CT_Shape3D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shape3DStyles.xsd
Abstract
Collapse XSD Schema Diagram:

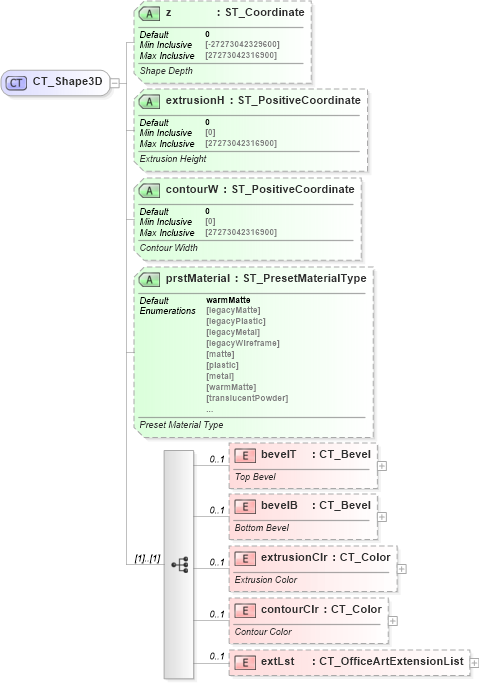

Drilldown into extLst in schema dml-shape3dstyles_xsd Drilldown into contourClr in schema dml-shape3dstyles_xsd Drilldown into extrusionClr in schema dml-shape3dstyles_xsd Drilldown into bevelB in schema dml-shape3dstyles_xsd Drilldown into bevelT in schema dml-shape3dstyles_xsd Drilldown into prstMaterial in schema dml-shape3dstyles_xsd Drilldown into contourW in schema dml-shape3dstyles_xsd Drilldown into extrusionH in schema dml-shape3dstyles_xsd Drilldown into z in schema dml-shape3dstyles_xsdXSD Diagram of CT_Shape3D in schema dml-shape3dstyles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Shape3D">
    <xsd:sequence>
        <xsd:element name="bevelT" type="CT_Bevel" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top Bevel</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bevelB" type="CT_Bevel" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bottom Bevel</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extrusionClr" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Extrusion Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="contourClr" type="CT_Color" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Contour Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="z" type="ST_Coordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Shape Depth</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="extrusionH" type="ST_PositiveCoordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Extrusion Height</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="contourW" type="ST_PositiveCoordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Contour Width</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="prstMaterial" type="ST_PresetMaterialType" use="optional" default="warmMatte">
        <xsd:annotation>
            <xsd:documentation>Preset Material Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bevelT a:bevelT 0 1
bevelB a:bevelB 0 1
extrusionClr a:extrusionClr 0 1
contourClr a:contourClr 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
z a:z 0 Optional
extrusionH a:extrusionH 0 Optional
contourW a:contourW 0 Optional
prstMaterial a:prstMaterial warmMatte Optional
Collapse Derivation Tree:
Collapse References:
a:sp3d, nsC:sp3d, a:sp3d, a:sp3d
