Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: sp3d
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: a:CT_Shape3D
Containing Schema: dml-diagramStyleDefinition.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
3-D Shape Properties
Collapse XSD Schema Diagram:

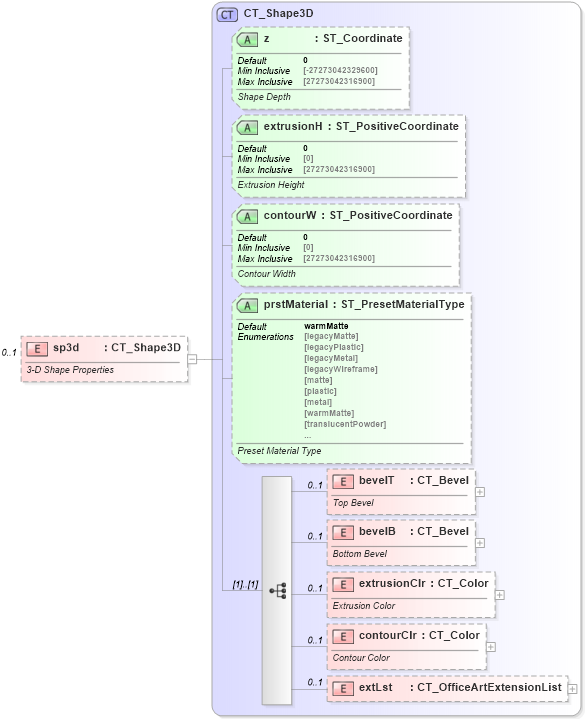

Drilldown into extLst in schema dml-shape3dstyles_xsd Drilldown into contourClr in schema dml-shape3dstyles_xsd Drilldown into extrusionClr in schema dml-shape3dstyles_xsd Drilldown into bevelB in schema dml-shape3dstyles_xsd Drilldown into bevelT in schema dml-shape3dstyles_xsd Drilldown into prstMaterial in schema dml-shape3dstyles_xsd Drilldown into contourW in schema dml-shape3dstyles_xsd Drilldown into extrusionH in schema dml-shape3dstyles_xsd Drilldown into z in schema dml-shape3dstyles_xsd Drilldown into CT_Shape3D in schema dml-shape3dstyles_xsdXSD Diagram of sp3d in schema dml-diagramstyledefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="sp3d" type="a:CT_Shape3D" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>3-D Shape Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bevelT a:bevelT 0 1
bevelB a:bevelB 0 1
extrusionClr a:extrusionClr 0 1
contourClr a:contourClr 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
z a:z 0 Optional
extrusionH a:extrusionH 0 Optional
contourW a:contourW 0 Optional
prstMaterial a:prstMaterial warmMatte Optional
Collapse Derivation Tree:
