Definition Type: ComplexType
Name: CT_ShapeNonVisual
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract

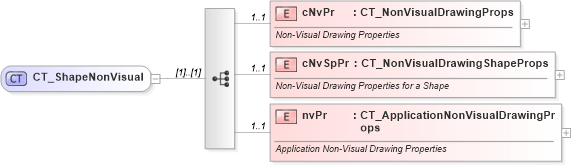

Collapse XSD Schema Diagram:
Drilldown into nvPr in schema pml-slide_xsd Drilldown into cNvSpPr in schema pml-slide_xsd Drilldown into cNvPr in schema pml-slide_xsdXSD Diagram of CT_ShapeNonVisual in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ShapeNonVisual">
    <xsd:sequence>
        <xsd:element name="cNvPr" type="a:CT_NonVisualDrawingProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Drawing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cNvSpPr" type="a:CT_NonVisualDrawingShapeProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Drawing Properties for a Shape</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="nvPr" type="CT_ApplicationNonVisualDrawingProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Application Non-Visual Drawing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cNvPr p:cNvPr 1 1
cNvSpPr p:cNvSpPr 1 1
nvPr p:nvPr 1 1
Collapse Derivation Tree:
Collapse References:
p:nvSpPr
