Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_SharedItems
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract
Collapse XSD Schema Diagram:

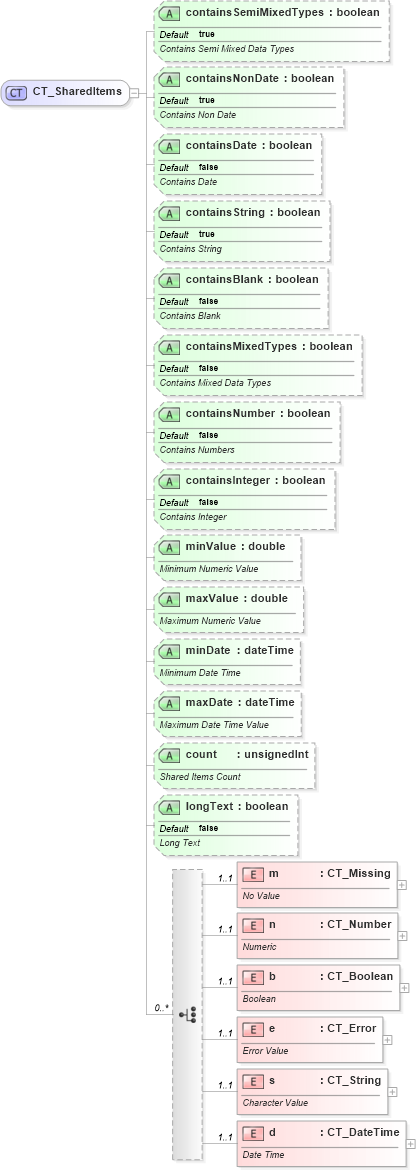

Drilldown into d in schema sml-pivottable_xsd Drilldown into s in schema sml-pivottable_xsd Drilldown into e in schema sml-pivottable_xsd Drilldown into b in schema sml-pivottable_xsd Drilldown into n in schema sml-pivottable_xsd Drilldown into m in schema sml-pivottable_xsd Drilldown into longText in schema sml-pivottable_xsd Drilldown into count in schema sml-pivottable_xsd Drilldown into maxDate in schema sml-pivottable_xsd Drilldown into minDate in schema sml-pivottable_xsd Drilldown into maxValue in schema sml-pivottable_xsd Drilldown into minValue in schema sml-pivottable_xsd Drilldown into containsInteger in schema sml-pivottable_xsd Drilldown into containsNumber in schema sml-pivottable_xsd Drilldown into containsMixedTypes in schema sml-pivottable_xsd Drilldown into containsBlank in schema sml-pivottable_xsd Drilldown into containsString in schema sml-pivottable_xsd Drilldown into containsDate in schema sml-pivottable_xsd Drilldown into containsNonDate in schema sml-pivottable_xsd Drilldown into containsSemiMixedTypes in schema sml-pivottable_xsdXSD Diagram of CT_SharedItems in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_SharedItems">
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
        <xsd:element name="m" type="CT_Missing" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>No Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="n" type="CT_Number" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Numeric</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="b" type="CT_Boolean" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Boolean</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="e" type="CT_Error" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Error Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="s" type="CT_String" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Character Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="d" type="CT_DateTime" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Date Time</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="containsSemiMixedTypes" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Contains Semi Mixed Data Types</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsNonDate" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Contains Non Date</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsDate" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Contains Date</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsString" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Contains String</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsBlank" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Contains Blank</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsMixedTypes" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Contains Mixed Data Types</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsNumber" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Contains Numbers</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="containsInteger" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Contains Integer</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minValue" type="xsd:double" use="optional">
        <xsd:annotation>
            <xsd:documentation>Minimum Numeric Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maxValue" type="xsd:double" use="optional">
        <xsd:annotation>
            <xsd:documentation>Maximum Numeric Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minDate" type="xsd:dateTime" use="optional">
        <xsd:annotation>
            <xsd:documentation>Minimum Date Time</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maxDate" type="xsd:dateTime" use="optional">
        <xsd:annotation>
            <xsd:documentation>Maximum Date Time Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="count" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shared Items Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="longText" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Long Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
m nsM:m 1 1
n nsM:n 1 1
b nsM:b 1 1
e nsM:e 1 1
s nsM:s 1 1
d nsM:d 1 1
Collapse Child Attributes:
Name Type Default Value Use
containsSemiMixedTypes nsM:containsSemiMixedTypes true Optional
containsNonDate nsM:containsNonDate true Optional
containsDate nsM:containsDate false Optional
containsString nsM:containsString true Optional
containsBlank nsM:containsBlank false Optional
containsMixedTypes nsM:containsMixedTypes false Optional
containsNumber nsM:containsNumber false Optional
containsInteger nsM:containsInteger false Optional
minValue nsM:minValue Optional
maxValue nsM:maxValue Optional
minDate nsM:minDate Optional
maxDate nsM:maxDate Optional
count nsM:count Optional
longText nsM:longText false Optional
Collapse Derivation Tree:
Collapse References:
nsM:sharedItems
