Definition Type: ComplexType
Name: CT_SlideTransition
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-animationInfo.xsd
Abstract

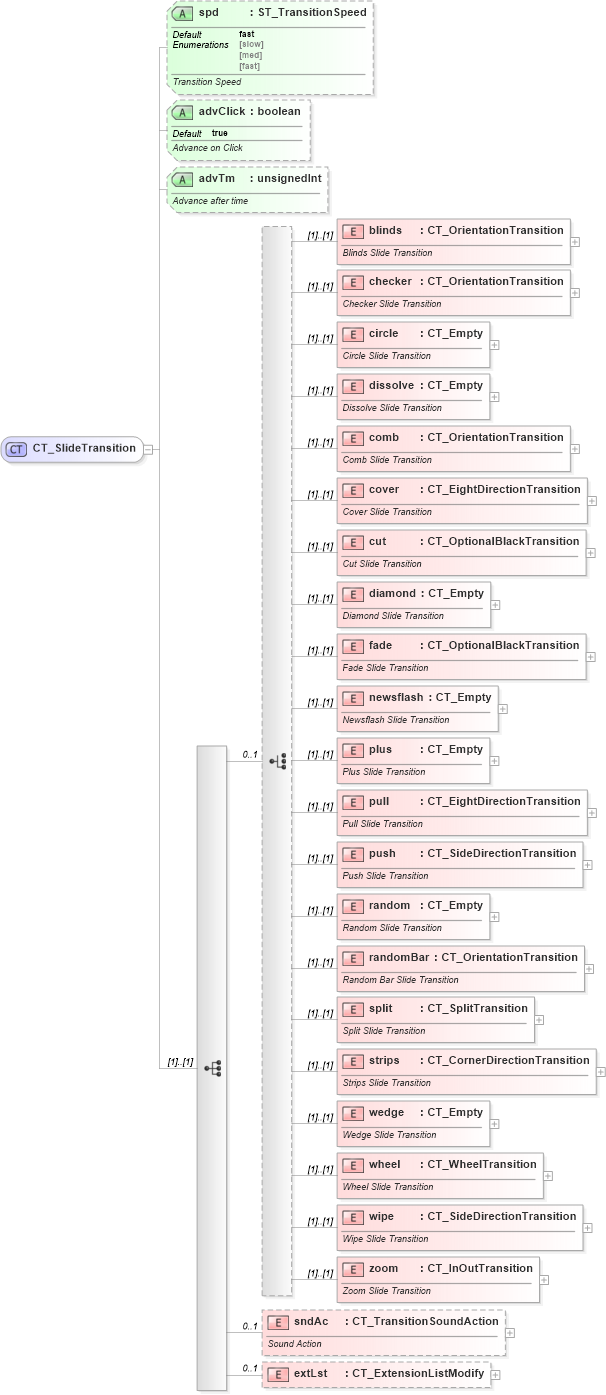

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-animationinfo_xsd Drilldown into sndAc in schema pml-animationinfo_xsd Drilldown into zoom in schema pml-animationinfo_xsd Drilldown into wipe in schema pml-animationinfo_xsd Drilldown into wheel in schema pml-animationinfo_xsd Drilldown into wedge in schema pml-animationinfo_xsd Drilldown into strips in schema pml-animationinfo_xsd Drilldown into split in schema pml-animationinfo_xsd Drilldown into randomBar in schema pml-animationinfo_xsd Drilldown into random in schema pml-animationinfo_xsd Drilldown into push in schema pml-animationinfo_xsd Drilldown into pull in schema pml-animationinfo_xsd Drilldown into plus in schema pml-animationinfo_xsd Drilldown into newsflash in schema pml-animationinfo_xsd Drilldown into fade in schema pml-animationinfo_xsd Drilldown into diamond in schema pml-animationinfo_xsd Drilldown into cut in schema pml-animationinfo_xsd Drilldown into cover in schema pml-animationinfo_xsd Drilldown into comb in schema pml-animationinfo_xsd Drilldown into dissolve in schema pml-animationinfo_xsd Drilldown into circle in schema pml-animationinfo_xsd Drilldown into checker in schema pml-animationinfo_xsd Drilldown into blinds in schema pml-animationinfo_xsd Drilldown into advTm in schema pml-animationinfo_xsd Drilldown into advClick in schema pml-animationinfo_xsd Drilldown into spd in schema pml-animationinfo_xsdXSD Diagram of CT_SlideTransition in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_SlideTransition">
    <xsd:sequence>
        <xsd:choice minOccurs="0" maxOccurs="1">
            <xsd:element name="blinds" type="CT_OrientationTransition">
                <xsd:annotation>
                    <xsd:documentation>Blinds Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="checker" type="CT_OrientationTransition">
                <xsd:annotation>
                    <xsd:documentation>Checker Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="circle" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Circle Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="dissolve" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Dissolve Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="comb" type="CT_OrientationTransition">
                <xsd:annotation>
                    <xsd:documentation>Comb Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="cover" type="CT_EightDirectionTransition">
                <xsd:annotation>
                    <xsd:documentation>Cover Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="cut" type="CT_OptionalBlackTransition">
                <xsd:annotation>
                    <xsd:documentation>Cut Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="diamond" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Diamond Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="fade" type="CT_OptionalBlackTransition">
                <xsd:annotation>
                    <xsd:documentation>Fade Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="newsflash" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Newsflash Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="plus" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Plus Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="pull" type="CT_EightDirectionTransition">
                <xsd:annotation>
                    <xsd:documentation>Pull Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="push" type="CT_SideDirectionTransition">
                <xsd:annotation>
                    <xsd:documentation>Push Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="random" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Random Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="randomBar" type="CT_OrientationTransition">
                <xsd:annotation>
                    <xsd:documentation>Random Bar Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="split" type="CT_SplitTransition">
                <xsd:annotation>
                    <xsd:documentation>Split Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="strips" type="CT_CornerDirectionTransition">
                <xsd:annotation>
                    <xsd:documentation>Strips Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wedge" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Wedge Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wheel" type="CT_WheelTransition">
                <xsd:annotation>
                    <xsd:documentation>Wheel Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wipe" type="CT_SideDirectionTransition">
                <xsd:annotation>
                    <xsd:documentation>Wipe Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="zoom" type="CT_InOutTransition">
                <xsd:annotation>
                    <xsd:documentation>Zoom Slide Transition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="sndAc" minOccurs="0" maxOccurs="1" type="CT_TransitionSoundAction">
            <xsd:annotation>
                <xsd:documentation>Sound Action</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionListModify" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="spd" type="ST_TransitionSpeed" use="optional" default="fast">
        <xsd:annotation>
            <xsd:documentation>Transition Speed</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="advClick" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Advance on Click</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="advTm" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Advance after time</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
blinds p:blinds (1) (1)
checker p:checker (1) (1)
circle p:circle (1) (1)
dissolve p:dissolve (1) (1)
comb p:comb (1) (1)
cover p:cover (1) (1)
cut p:cut (1) (1)
diamond p:diamond (1) (1)
fade p:fade (1) (1)
newsflash p:newsflash (1) (1)
plus p:plus (1) (1)
pull p:pull (1) (1)
push p:push (1) (1)
random p:random (1) (1)
randomBar p:randomBar (1) (1)
split p:split (1) (1)
strips p:strips (1) (1)
wedge p:wedge (1) (1)
wheel p:wheel (1) (1)
wipe p:wipe (1) (1)
zoom p:zoom (1) (1)
sndAc p:sndAc 0 1
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
spd p:spd fast Optional
advClick p:advClick true Optional
advTm p:advTm Optional
Collapse Derivation Tree:
Collapse References:
p:transition, p:transition, p:transition
