Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: transition
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_SlideTransition
Containing Schema: pml-slide.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Slide Transition for a Slide Master

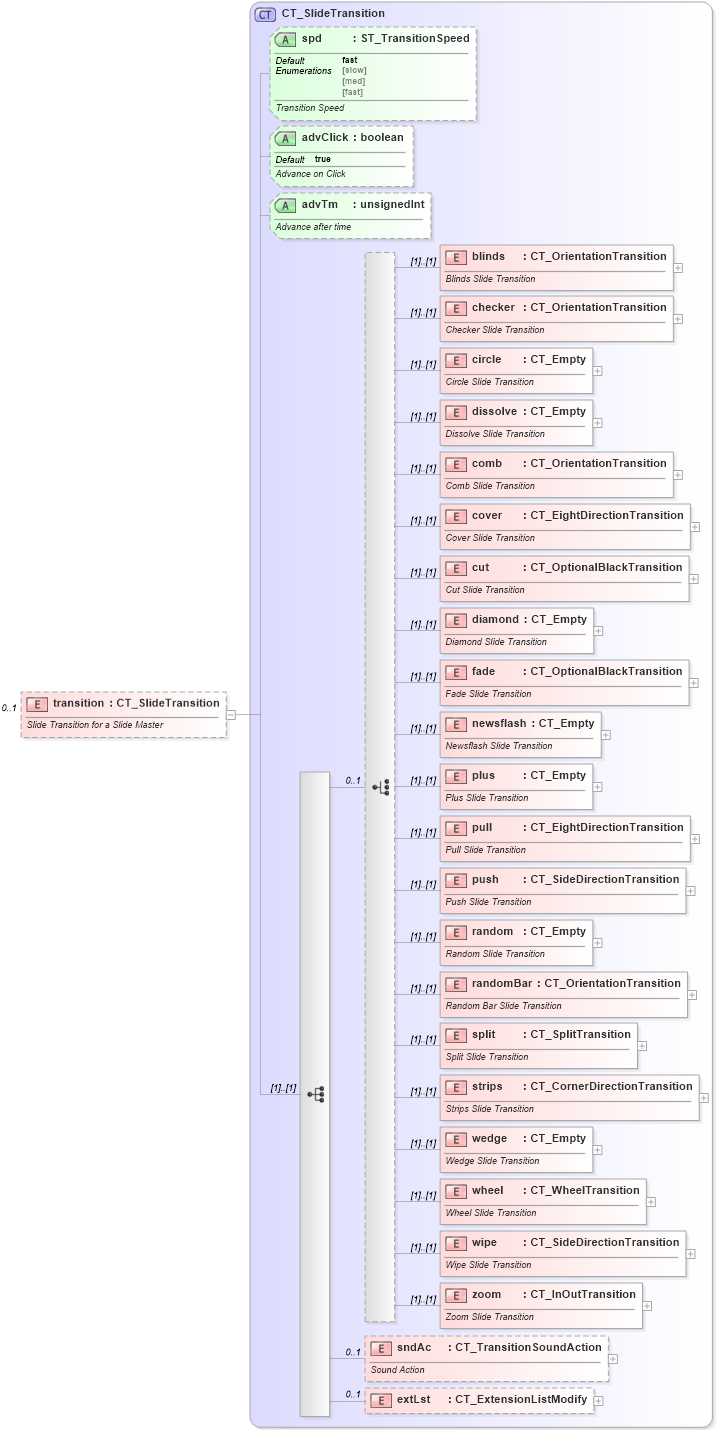

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-animationinfo_xsd Drilldown into sndAc in schema pml-animationinfo_xsd Drilldown into zoom in schema pml-animationinfo_xsd Drilldown into wipe in schema pml-animationinfo_xsd Drilldown into wheel in schema pml-animationinfo_xsd Drilldown into wedge in schema pml-animationinfo_xsd Drilldown into strips in schema pml-animationinfo_xsd Drilldown into split in schema pml-animationinfo_xsd Drilldown into randomBar in schema pml-animationinfo_xsd Drilldown into random in schema pml-animationinfo_xsd Drilldown into push in schema pml-animationinfo_xsd Drilldown into pull in schema pml-animationinfo_xsd Drilldown into plus in schema pml-animationinfo_xsd Drilldown into newsflash in schema pml-animationinfo_xsd Drilldown into fade in schema pml-animationinfo_xsd Drilldown into diamond in schema pml-animationinfo_xsd Drilldown into cut in schema pml-animationinfo_xsd Drilldown into cover in schema pml-animationinfo_xsd Drilldown into comb in schema pml-animationinfo_xsd Drilldown into dissolve in schema pml-animationinfo_xsd Drilldown into circle in schema pml-animationinfo_xsd Drilldown into checker in schema pml-animationinfo_xsd Drilldown into blinds in schema pml-animationinfo_xsd Drilldown into advTm in schema pml-animationinfo_xsd Drilldown into advClick in schema pml-animationinfo_xsd Drilldown into spd in schema pml-animationinfo_xsd Drilldown into CT_SlideTransition in schema pml-animationinfo_xsdXSD Diagram of transition in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="transition" type="CT_SlideTransition" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Slide Transition for a Slide Master</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
blinds p:blinds (1) (1)
checker p:checker (1) (1)
circle p:circle (1) (1)
dissolve p:dissolve (1) (1)
comb p:comb (1) (1)
cover p:cover (1) (1)
cut p:cut (1) (1)
diamond p:diamond (1) (1)
fade p:fade (1) (1)
newsflash p:newsflash (1) (1)
plus p:plus (1) (1)
pull p:pull (1) (1)
push p:push (1) (1)
random p:random (1) (1)
randomBar p:randomBar (1) (1)
split p:split (1) (1)
strips p:strips (1) (1)
wedge p:wedge (1) (1)
wheel p:wheel (1) (1)
wipe p:wipe (1) (1)
zoom p:zoom (1) (1)
sndAc p:sndAc 0 1
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
spd p:spd fast Optional
advClick p:advClick true Optional
advTm p:advTm Optional
Collapse Derivation Tree:
