Definition Type: ComplexType
Name: CT_StyleLabel
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramStyleDefinition.xsd
Abstract
Collapse XSD Schema Diagram:

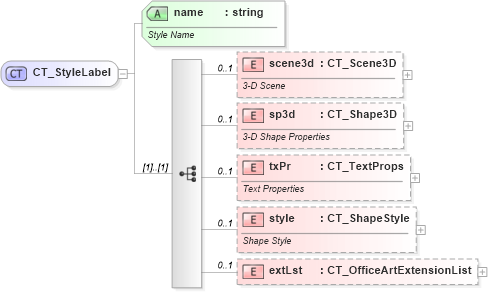

Drilldown into extLst in schema dml-diagramstyledefinition_xsd Drilldown into style in schema dml-diagramstyledefinition_xsd Drilldown into txPr in schema dml-diagramstyledefinition_xsd Drilldown into sp3d in schema dml-diagramstyledefinition_xsd Drilldown into scene3d in schema dml-diagramstyledefinition_xsd Drilldown into name in schema dml-diagramstyledefinition_xsdXSD Diagram of CT_StyleLabel in schema dml-diagramstyledefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_StyleLabel">
    <xsd:sequence>
        <xsd:element name="scene3d" type="a:CT_Scene3D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>3-D Scene</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sp3d" type="a:CT_Shape3D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>3-D Shape Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="txPr" type="CT_TextProps" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Text Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="style" type="a:CT_ShapeStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Style</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Style Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scene3d nsC:scene3d 0 1
sp3d nsC:sp3d 0 1
txPr nsC:txPr 0 1
style nsC:style 0 1
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name nsC:name Required
Collapse Derivation Tree:
Collapse References:
nsC:styleLbl
