Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TableCellProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-table.xsd
Abstract

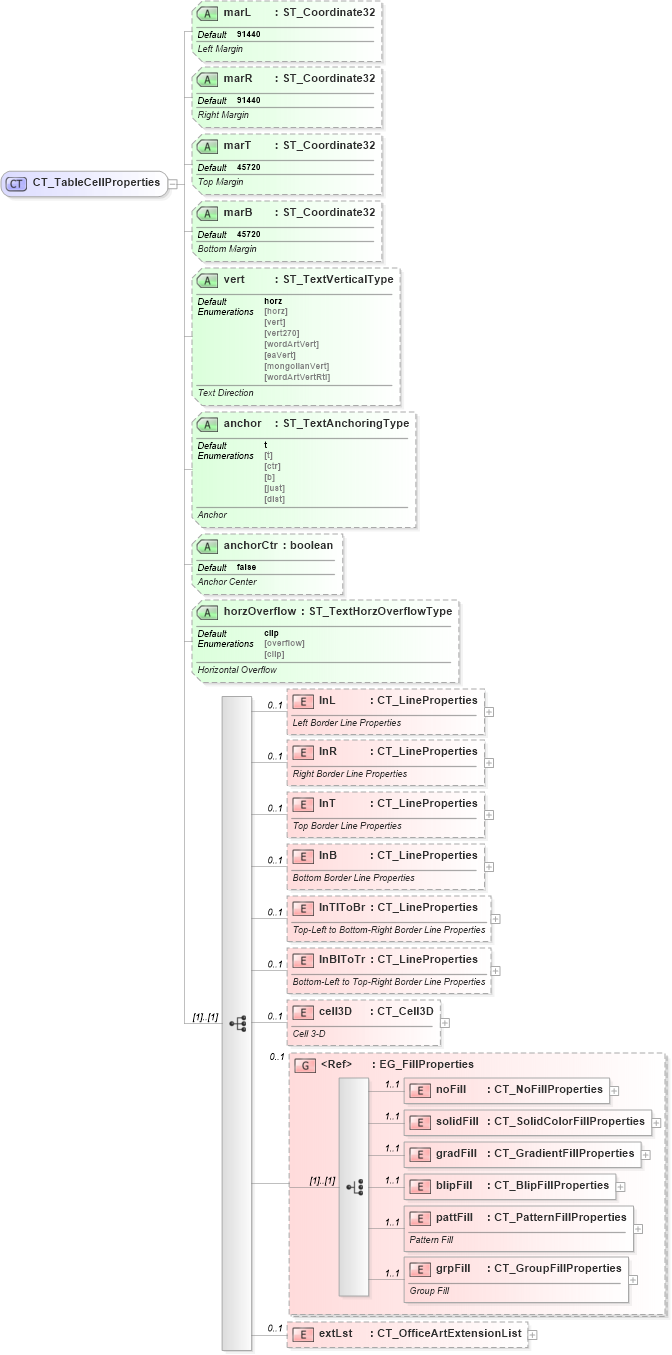

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-table_xsd Drilldown into grpFill in schema dml-shapeeffects_xsd Drilldown into pattFill in schema dml-shapeeffects_xsd Drilldown into blipFill in schema dml-shapeeffects_xsd Drilldown into gradFill in schema dml-shapeeffects_xsd Drilldown into solidFill in schema dml-shapeeffects_xsd Drilldown into noFill in schema dml-shapeeffects_xsd Drilldown into EG_FillProperties in schema dml-shapeeffects_xsd Drilldown into cell3D in schema dml-table_xsd Drilldown into lnBlToTr in schema dml-table_xsd Drilldown into lnTlToBr in schema dml-table_xsd Drilldown into lnB in schema dml-table_xsd Drilldown into lnT in schema dml-table_xsd Drilldown into lnR in schema dml-table_xsd Drilldown into lnL in schema dml-table_xsd Drilldown into horzOverflow in schema dml-table_xsd Drilldown into anchorCtr in schema dml-table_xsd Drilldown into anchor in schema dml-table_xsd Drilldown into vert in schema dml-table_xsd Drilldown into marB in schema dml-table_xsd Drilldown into marT in schema dml-table_xsd Drilldown into marR in schema dml-table_xsd Drilldown into marL in schema dml-table_xsdXSD Diagram of CT_TableCellProperties in schema dml-table_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TableCellProperties">
    <xsd:sequence>
        <xsd:element name="lnL" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Left Border Line Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lnR" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Right Border Line Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lnT" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top Border Line Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lnB" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bottom Border Line Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lnTlToBr" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top-Left to Bottom-Right Border Line Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lnBlToTr" type="CT_LineProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bottom-Left to Top-Right Border Line Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cell3D" type="CT_Cell3D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Cell 3-D</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="EG_FillProperties" minOccurs="0" maxOccurs="1" />
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="marL" type="ST_Coordinate32" use="optional" default="91440">
        <xsd:annotation>
            <xsd:documentation>Left Margin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="marR" type="ST_Coordinate32" use="optional" default="91440">
        <xsd:annotation>
            <xsd:documentation>Right Margin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="marT" type="ST_Coordinate32" use="optional" default="45720">
        <xsd:annotation>
            <xsd:documentation>Top Margin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="marB" type="ST_Coordinate32" use="optional" default="45720">
        <xsd:annotation>
            <xsd:documentation>Bottom Margin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vert" type="ST_TextVerticalType" use="optional" default="horz">
        <xsd:annotation>
            <xsd:documentation>Text Direction</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="anchor" type="ST_TextAnchoringType" use="optional" default="t">
        <xsd:annotation>
            <xsd:documentation>Anchor</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="anchorCtr" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Anchor Center</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="horzOverflow" type="ST_TextHorzOverflowType" use="optional" default="clip">
        <xsd:annotation>
            <xsd:documentation>Horizontal Overflow</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
lnL a:lnL 0 1
lnR a:lnR 0 1
lnT a:lnT 0 1
lnB a:lnB 0 1
lnTlToBr a:lnTlToBr 0 1
lnBlToTr a:lnBlToTr 0 1
cell3D a:cell3D 0 1
noFill a:noFill 1 1
solidFill a:solidFill 1 1
gradFill a:gradFill 1 1
blipFill a:blipFill 1 1
pattFill a:pattFill 1 1
grpFill a:grpFill 1 1
extLst a:extLst 0 1
<xs:group> a:EG_FillProperties 0 1
Collapse Child Attributes:
Name Type Default Value Use
marL a:marL 91440 Optional
marR a:marR 91440 Optional
marT a:marT 45720 Optional
marB a:marB 45720 Optional
vert a:vert horz Optional
anchor a:anchor t Optional
anchorCtr a:anchorCtr false Optional
horzOverflow a:horzOverflow clip Optional
Collapse Derivation Tree:
  • CT_TableCellProperties
Collapse References:
a:tcPr
