Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TableStyleTextStyle
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-tableStyle.xsd
Abstract

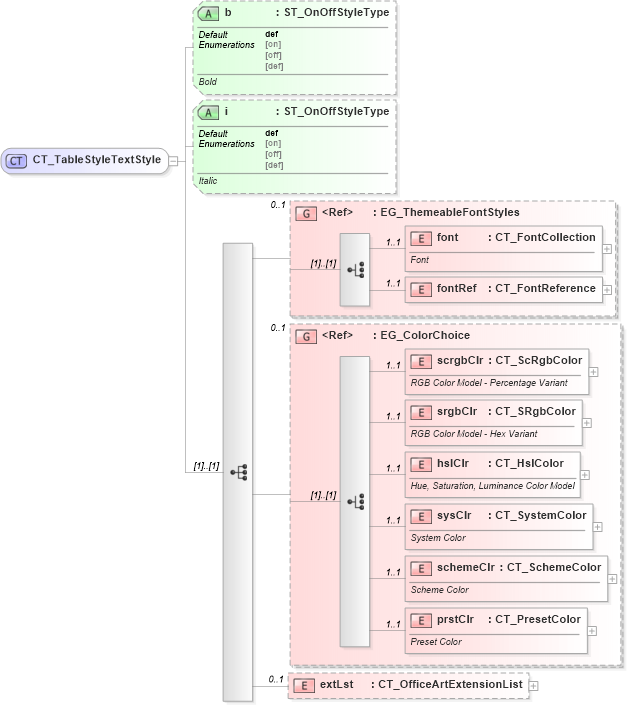

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-tablestyle_xsd Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsd Drilldown into EG_ColorChoice in schema dml-basetypes_xsd Drilldown into fontRef in schema dml-tablestyle_xsd Drilldown into font in schema dml-tablestyle_xsd Drilldown into EG_ThemeableFontStyles in schema dml-tablestyle_xsd Drilldown into i in schema dml-tablestyle_xsd Drilldown into b in schema dml-tablestyle_xsdXSD Diagram of CT_TableStyleTextStyle in schema dml-tablestyle_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TableStyleTextStyle">
    <xsd:sequence>
        <xsd:group ref="EG_ThemeableFontStyles" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="EG_ColorChoice" minOccurs="0" maxOccurs="1" />
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="b" type="ST_OnOffStyleType" use="optional" default="def">
        <xsd:annotation>
            <xsd:documentation>Bold</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="i" type="ST_OnOffStyleType" use="optional" default="def">
        <xsd:annotation>
            <xsd:documentation>Italic</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
font a:font 1 1
fontRef a:fontRef 1 1
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
extLst a:extLst 0 1
<xs:group> a:EG_ThemeableFontStyles 0 1
<xs:group> a:EG_ColorChoice 0 1
Collapse Child Attributes:
Name Type Default Value Use
b a:b def Optional
i a:i def Optional
Collapse Derivation Tree:
Collapse References:
a:tcTxStyle
