Definition Type: ComplexType
Name: CT_TLCommonBehaviorData
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-animationInfo.xsd
Abstract

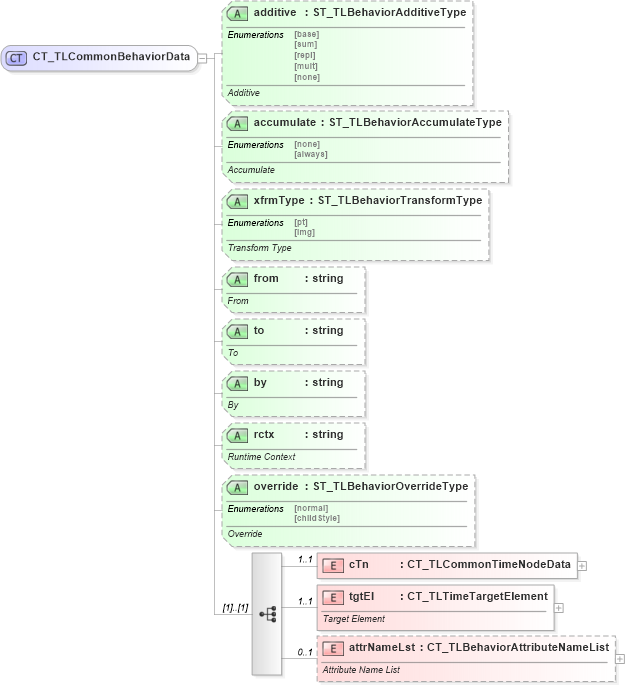

Collapse XSD Schema Diagram:
Drilldown into attrNameLst in schema pml-animationinfo_xsd Drilldown into tgtEl in schema pml-animationinfo_xsd Drilldown into cTn in schema pml-animationinfo_xsd Drilldown into override in schema pml-animationinfo_xsd Drilldown into rctx in schema pml-animationinfo_xsd Drilldown into by in schema pml-animationinfo_xsd Drilldown into to in schema pml-animationinfo_xsd Drilldown into from in schema pml-animationinfo_xsd Drilldown into xfrmType in schema pml-animationinfo_xsd Drilldown into accumulate in schema pml-animationinfo_xsd Drilldown into additive in schema pml-animationinfo_xsdXSD Diagram of CT_TLCommonBehaviorData in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TLCommonBehaviorData">
    <xsd:sequence>
        <xsd:element name="cTn" type="CT_TLCommonTimeNodeData" minOccurs="1" maxOccurs="1" />
        <xsd:element name="tgtEl" type="CT_TLTimeTargetElement" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Target Element</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="attrNameLst" type="CT_TLBehaviorAttributeNameList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Attribute Name List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="additive" type="ST_TLBehaviorAdditiveType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Additive</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accumulate" type="ST_TLBehaviorAccumulateType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Accumulate</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xfrmType" type="ST_TLBehaviorTransformType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Transform Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="from" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>From</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="to" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>To</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="by" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>By</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rctx" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Runtime Context</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="override" type="ST_TLBehaviorOverrideType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Override</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cTn p:cTn 1 1
tgtEl p:tgtEl 1 1
attrNameLst p:attrNameLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
additive p:additive Optional
accumulate p:accumulate Optional
xfrmType p:xfrmType Optional
from p:from Optional
to p:to Optional
by p:by Optional
rctx p:rctx Optional
override p:override Optional
Collapse Derivation Tree:
Collapse References:
p:cBhvr, p:cBhvr, p:cBhvr, p:cBhvr, p:cBhvr, p:cBhvr, p:cBhvr, p:cBhvr
