Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: cTn
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_TLCommonTimeNodeData
Containing Schema: pml-animationInfo.xsd
MinOccurs 1
MaxOccurs 1
Abstract

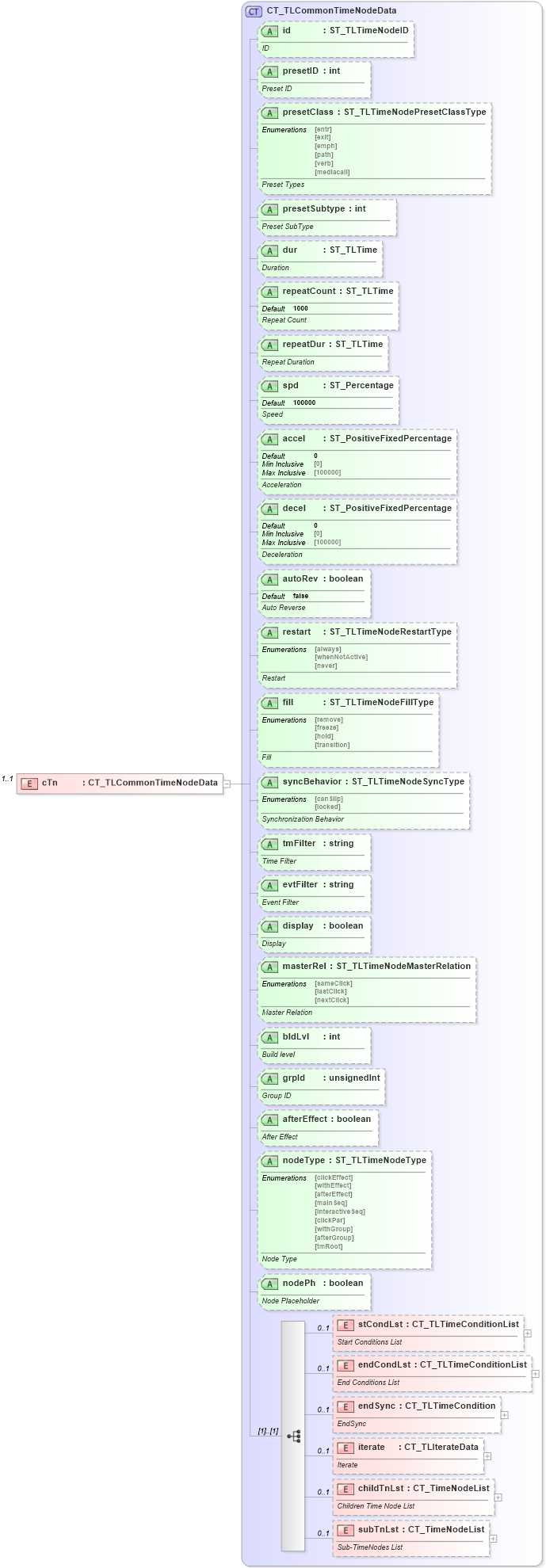

Collapse XSD Schema Diagram:
Drilldown into subTnLst in schema pml-animationinfo_xsd Drilldown into childTnLst in schema pml-animationinfo_xsd Drilldown into iterate in schema pml-animationinfo_xsd Drilldown into endSync in schema pml-animationinfo_xsd Drilldown into endCondLst in schema pml-animationinfo_xsd Drilldown into stCondLst in schema pml-animationinfo_xsd Drilldown into nodePh in schema pml-animationinfo_xsd Drilldown into nodeType in schema pml-animationinfo_xsd Drilldown into afterEffect in schema pml-animationinfo_xsd Drilldown into grpId in schema pml-animationinfo_xsd Drilldown into bldLvl in schema pml-animationinfo_xsd Drilldown into masterRel in schema pml-animationinfo_xsd Drilldown into display in schema pml-animationinfo_xsd Drilldown into evtFilter in schema pml-animationinfo_xsd Drilldown into tmFilter in schema pml-animationinfo_xsd Drilldown into syncBehavior in schema pml-animationinfo_xsd Drilldown into fill in schema pml-animationinfo_xsd Drilldown into restart in schema pml-animationinfo_xsd Drilldown into autoRev in schema pml-animationinfo_xsd Drilldown into decel in schema pml-animationinfo_xsd Drilldown into accel in schema pml-animationinfo_xsd Drilldown into spd in schema pml-animationinfo_xsd Drilldown into repeatDur in schema pml-animationinfo_xsd Drilldown into repeatCount in schema pml-animationinfo_xsd Drilldown into dur in schema pml-animationinfo_xsd Drilldown into presetSubtype in schema pml-animationinfo_xsd Drilldown into presetClass in schema pml-animationinfo_xsd Drilldown into presetID in schema pml-animationinfo_xsd Drilldown into id in schema pml-animationinfo_xsd Drilldown into CT_TLCommonTimeNodeData in schema pml-animationinfo_xsdXSD Diagram of cTn in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cTn" type="CT_TLCommonTimeNodeData" minOccurs="1" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
stCondLst p:stCondLst 0 1
endCondLst p:endCondLst 0 1
endSync p:endSync 0 1
iterate p:iterate 0 1
childTnLst p:childTnLst 0 1
subTnLst p:subTnLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id p:id Optional
presetID p:presetID Optional
presetClass p:presetClass Optional
presetSubtype p:presetSubtype Optional
dur p:dur Optional
repeatCount p:repeatCount 1000 Optional
repeatDur p:repeatDur Optional
spd p:spd 100000 Optional
accel p:accel 0 Optional
decel p:decel 0 Optional
autoRev p:autoRev false Optional
restart p:restart Optional
fill p:fill Optional
syncBehavior p:syncBehavior Optional
tmFilter p:tmFilter Optional
evtFilter p:evtFilter Optional
display p:display Optional
masterRel p:masterRel Optional
bldLvl p:bldLvl Optional
grpId p:grpId Optional
afterEffect p:afterEffect Optional
nodeType p:nodeType Optional
nodePh p:nodePh Optional
Collapse Derivation Tree:
