Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TLCommonTimeNodeData
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-animationInfo.xsd
Abstract

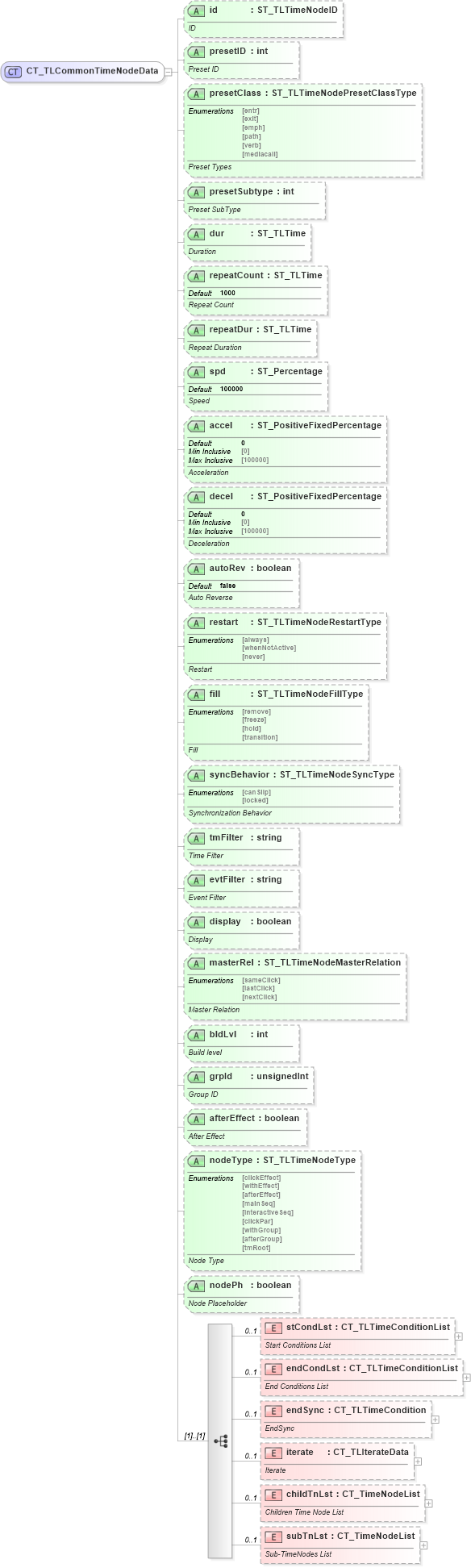

Collapse XSD Schema Diagram:
Drilldown into subTnLst in schema pml-animationinfo_xsd Drilldown into childTnLst in schema pml-animationinfo_xsd Drilldown into iterate in schema pml-animationinfo_xsd Drilldown into endSync in schema pml-animationinfo_xsd Drilldown into endCondLst in schema pml-animationinfo_xsd Drilldown into stCondLst in schema pml-animationinfo_xsd Drilldown into nodePh in schema pml-animationinfo_xsd Drilldown into nodeType in schema pml-animationinfo_xsd Drilldown into afterEffect in schema pml-animationinfo_xsd Drilldown into grpId in schema pml-animationinfo_xsd Drilldown into bldLvl in schema pml-animationinfo_xsd Drilldown into masterRel in schema pml-animationinfo_xsd Drilldown into display in schema pml-animationinfo_xsd Drilldown into evtFilter in schema pml-animationinfo_xsd Drilldown into tmFilter in schema pml-animationinfo_xsd Drilldown into syncBehavior in schema pml-animationinfo_xsd Drilldown into fill in schema pml-animationinfo_xsd Drilldown into restart in schema pml-animationinfo_xsd Drilldown into autoRev in schema pml-animationinfo_xsd Drilldown into decel in schema pml-animationinfo_xsd Drilldown into accel in schema pml-animationinfo_xsd Drilldown into spd in schema pml-animationinfo_xsd Drilldown into repeatDur in schema pml-animationinfo_xsd Drilldown into repeatCount in schema pml-animationinfo_xsd Drilldown into dur in schema pml-animationinfo_xsd Drilldown into presetSubtype in schema pml-animationinfo_xsd Drilldown into presetClass in schema pml-animationinfo_xsd Drilldown into presetID in schema pml-animationinfo_xsd Drilldown into id in schema pml-animationinfo_xsdXSD Diagram of CT_TLCommonTimeNodeData in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TLCommonTimeNodeData">
    <xsd:sequence>
        <xsd:element name="stCondLst" type="CT_TLTimeConditionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Start Conditions List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="endCondLst" type="CT_TLTimeConditionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>End Conditions List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="endSync" type="CT_TLTimeCondition" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>EndSync</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="iterate" type="CT_TLIterateData" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Iterate</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="childTnLst" type="CT_TimeNodeList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Children Time Node List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="subTnLst" type="CT_TimeNodeList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Sub-TimeNodes List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="ST_TLTimeNodeID" use="optional">
        <xsd:annotation>
            <xsd:documentation>ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presetID" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Preset ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presetClass" type="ST_TLTimeNodePresetClassType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Preset Types</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presetSubtype" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Preset SubType</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dur" type="ST_TLTime" use="optional">
        <xsd:annotation>
            <xsd:documentation>Duration</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="repeatCount" type="ST_TLTime" use="optional" default="1000">
        <xsd:annotation>
            <xsd:documentation>Repeat Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="repeatDur" type="ST_TLTime" use="optional">
        <xsd:annotation>
            <xsd:documentation>Repeat Duration</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="spd" type="a:ST_Percentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>Speed</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="accel" type="a:ST_PositiveFixedPercentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Acceleration</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="decel" type="a:ST_PositiveFixedPercentage" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Deceleration</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="autoRev" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Auto Reverse</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="restart" type="ST_TLTimeNodeRestartType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Restart</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fill" type="ST_TLTimeNodeFillType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="syncBehavior" type="ST_TLTimeNodeSyncType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Synchronization Behavior</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tmFilter" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Time Filter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="evtFilter" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Event Filter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="display" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Display</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="masterRel" type="ST_TLTimeNodeMasterRelation" use="optional">
        <xsd:annotation>
            <xsd:documentation>Master Relation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bldLvl" type="xsd:int" use="optional">
        <xsd:annotation>
            <xsd:documentation>Build level</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="grpId" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Group ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="afterEffect" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>After Effect</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="nodeType" type="ST_TLTimeNodeType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Node Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="nodePh" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Node Placeholder</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
stCondLst p:stCondLst 0 1
endCondLst p:endCondLst 0 1
endSync p:endSync 0 1
iterate p:iterate 0 1
childTnLst p:childTnLst 0 1
subTnLst p:subTnLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id p:id Optional
presetID p:presetID Optional
presetClass p:presetClass Optional
presetSubtype p:presetSubtype Optional
dur p:dur Optional
repeatCount p:repeatCount 1000 Optional
repeatDur p:repeatDur Optional
spd p:spd 100000 Optional
accel p:accel 0 Optional
decel p:decel 0 Optional
autoRev p:autoRev false Optional
restart p:restart Optional
fill p:fill Optional
syncBehavior p:syncBehavior Optional
tmFilter p:tmFilter Optional
evtFilter p:evtFilter Optional
display p:display Optional
masterRel p:masterRel Optional
bldLvl p:bldLvl Optional
grpId p:grpId Optional
afterEffect p:afterEffect Optional
nodeType p:nodeType Optional
nodePh p:nodePh Optional
Collapse Derivation Tree:
Collapse References:
p:cTn, p:cTn, p:cTn, p:cTn, p:cTn
