Definition Type: ComplexType
Name: CT_Transform2D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd
Abstract
Collapse XSD Schema Diagram:

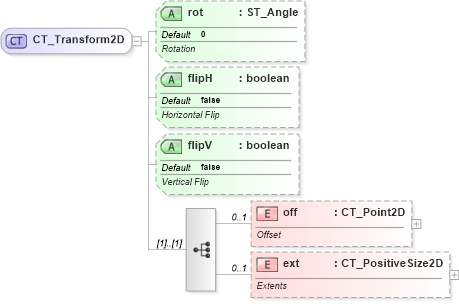

Drilldown into ext in schema dml-basetypes_xsd Drilldown into off in schema dml-basetypes_xsd Drilldown into flipV in schema dml-basetypes_xsd Drilldown into flipH in schema dml-basetypes_xsd Drilldown into rot in schema dml-basetypes_xsdXSD Diagram of CT_Transform2D in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Transform2D">
    <xsd:sequence>
        <xsd:element name="off" type="CT_Point2D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ext" type="CT_PositiveSize2D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Extents</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="rot" type="ST_Angle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Rotation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="flipH" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Horizontal Flip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="flipV" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Vertical Flip</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
off a:off 0 1
ext a:ext 0 1
Collapse Child Attributes:
Name Type Default Value Use
rot a:rot 0 Optional
flipH a:flipH false Optional
flipV a:flipV false Optional
Collapse Derivation Tree:
Collapse References:
cdr:xfrm, a:xfrm, a:xfrm, a:xfrm, nsF:xfrm, p:xfrm
