Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: xfrm
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_Transform2D
Containing Schema: dml-gvml.xsd
MinOccurs 1
MaxOccurs 1
Abstract

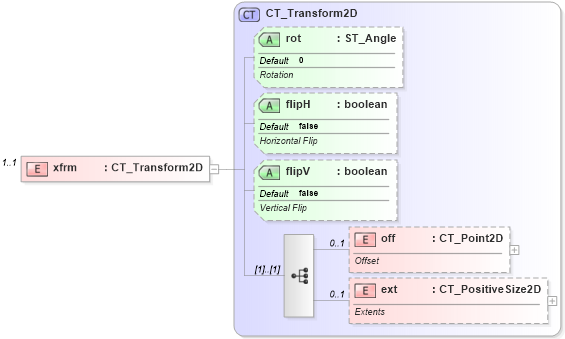

Collapse XSD Schema Diagram:
Drilldown into ext in schema dml-basetypes_xsd Drilldown into off in schema dml-basetypes_xsd Drilldown into flipV in schema dml-basetypes_xsd Drilldown into flipH in schema dml-basetypes_xsd Drilldown into rot in schema dml-basetypes_xsd Drilldown into CT_Transform2D in schema dml-basetypes_xsdXSD Diagram of xfrm in schema dml-gvml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="xfrm" type="CT_Transform2D" minOccurs="1" maxOccurs="1">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
off a:off 0 1
ext a:ext 0 1
Collapse Child Attributes:
Name Type Default Value Use
rot a:rot 0 Optional
flipH a:flipH false Optional
flipV a:flipV false Optional
Collapse Derivation Tree:
