Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_WebProperties
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-presentationProperties.xsd
Abstract
Collapse XSD Schema Diagram:

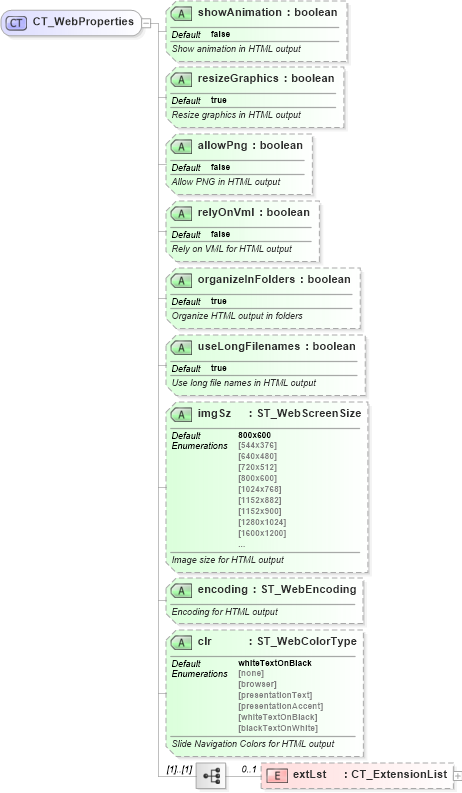

Drilldown into extLst in schema pml-presentationproperties_xsd Drilldown into clr in schema pml-presentationproperties_xsd Drilldown into encoding in schema pml-presentationproperties_xsd Drilldown into imgSz in schema pml-presentationproperties_xsd Drilldown into useLongFilenames in schema pml-presentationproperties_xsd Drilldown into organizeInFolders in schema pml-presentationproperties_xsd Drilldown into relyOnVml in schema pml-presentationproperties_xsd Drilldown into allowPng in schema pml-presentationproperties_xsd Drilldown into resizeGraphics in schema pml-presentationproperties_xsd Drilldown into showAnimation in schema pml-presentationproperties_xsdXSD Diagram of CT_WebProperties in schema pml-presentationproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_WebProperties">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="showAnimation" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Show animation in HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="resizeGraphics" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Resize graphics in HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="allowPng" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Allow PNG in HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="relyOnVml" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Rely on VML for HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="organizeInFolders" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Organize HTML output in folders</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="useLongFilenames" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Use long file names in HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="imgSz" type="ST_WebScreenSize" use="optional" default="800x600">
        <xsd:annotation>
            <xsd:documentation>Image size for HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="encoding" type="ST_WebEncoding" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Encoding for HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="clr" type="ST_WebColorType" use="optional" default="whiteTextOnBlack">
        <xsd:annotation>
            <xsd:documentation>Slide Navigation Colors for HTML output</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
showAnimation p:showAnimation false Optional
resizeGraphics p:resizeGraphics true Optional
allowPng p:allowPng false Optional
relyOnVml p:relyOnVml false Optional
organizeInFolders p:organizeInFolders true Optional
useLongFilenames p:useLongFilenames true Optional
imgSz p:imgSz 800x600 Optional
encoding p:encoding Optional
clr p:clr whiteTextOnBlack Optional
Collapse Derivation Tree:
Collapse References:
p:webPr
