Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: dLbl
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Type: nsA:CT_DLbl
Containing Schema: dml-chart.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Data Label

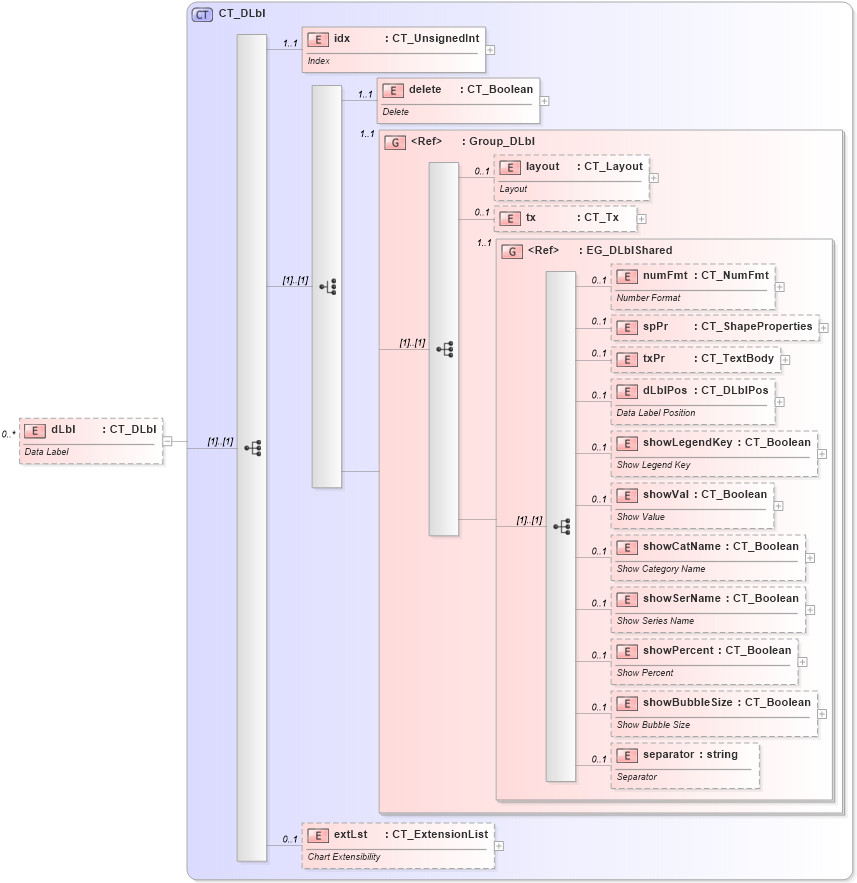

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into separator in schema dml-chart_xsd Drilldown into showBubbleSize in schema dml-chart_xsd Drilldown into showPercent in schema dml-chart_xsd Drilldown into showSerName in schema dml-chart_xsd Drilldown into showCatName in schema dml-chart_xsd Drilldown into showVal in schema dml-chart_xsd Drilldown into showLegendKey in schema dml-chart_xsd Drilldown into dLblPos in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsd Drilldown into EG_DLblShared in schema dml-chart_xsd Drilldown into tx in schema dml-chart_xsd Drilldown into layout in schema dml-chart_xsd Drilldown into Group_DLbl in schema dml-chart_xsd Drilldown into delete in schema dml-chart_xsd Drilldown into idx in schema dml-chart_xsd Drilldown into CT_DLbl in schema dml-chart_xsdXSD Diagram of dLbl in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="dLbl" type="CT_DLbl" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Data Label</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idx nsA:idx 1 1
delete nsA:delete 1 1
layout nsA:layout 0 1
tx nsA:tx 0 1
numFmt nsA:numFmt 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
dLblPos nsA:dLblPos 0 1
showLegendKey nsA:showLegendKey 0 1
showVal nsA:showVal 0 1
showCatName nsA:showCatName 0 1
showSerName nsA:showSerName 0 1
showPercent nsA:showPercent 0 1
showBubbleSize nsA:showBubbleSize 0 1
separator nsA:separator 0 1
extLst nsA:extLst 0 1
<xs:group> nsA:Group_DLbl 1 1
<xs:group> nsA:EG_DLblShared 1 1
Collapse Derivation Tree:
